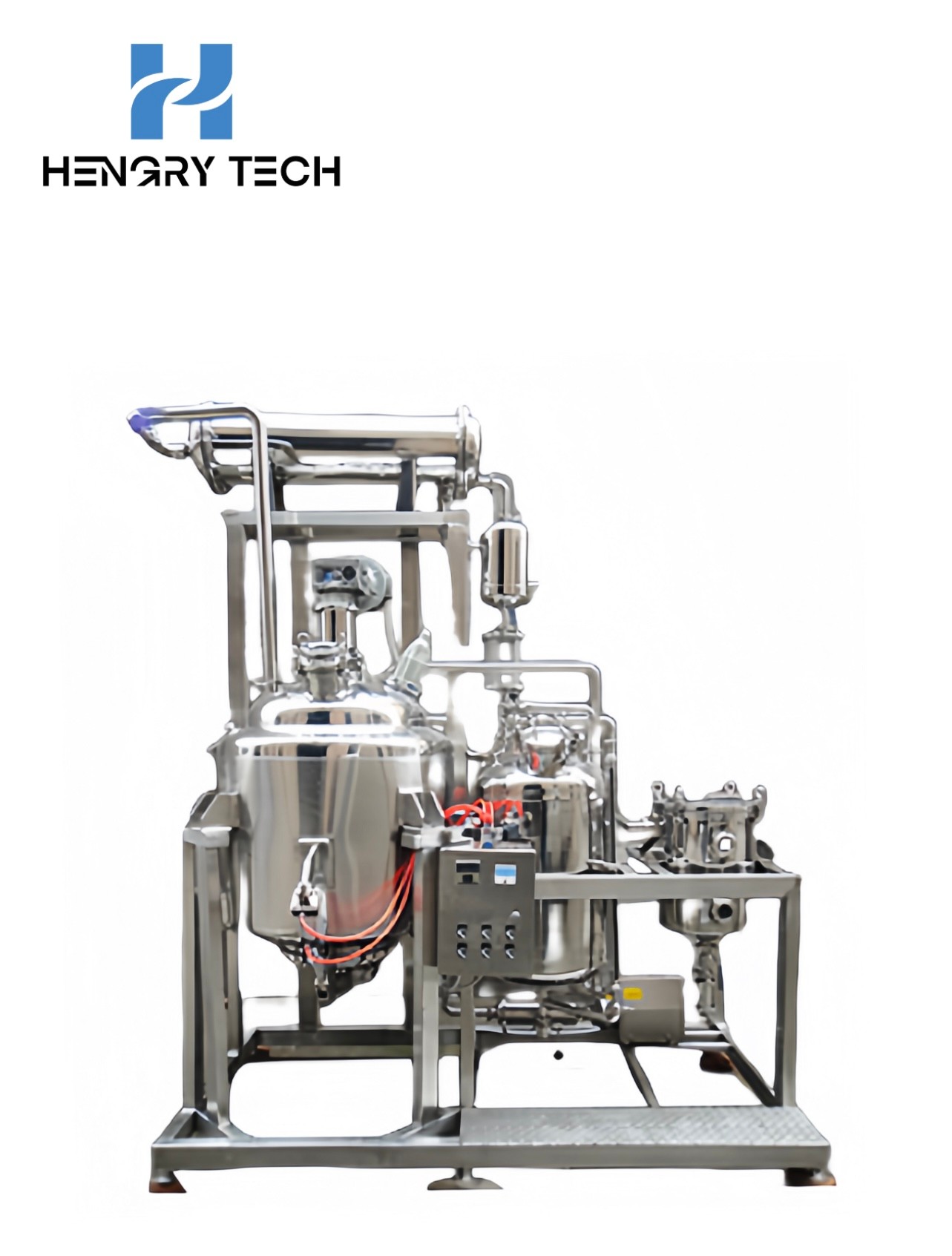

HR-PF11 Essential Oil Extraction Equipment

Essential oil extraction equipment is suitable for the extraction of essential oils (volatile oils) of plants and flowers, the equipment adopts water vapor distillation device to carry out water distillation mode, which can effectively extract the volatile oil components of plants, and the collection of all kinds of volatile aroma of plants is more significant.

Product Description:

Scope of application of essential oil extraction equipment

Essential oil extraction equipment is suitable for the extraction of essential oils (volatile oils) of plants and flowers, the equipment adopts water vapor distillation device to carry out water distillation mode, which can effectively extract the volatile oil components of plants, and the collection of all kinds of volatile aroma of plants is more significant. This equipment is suitable for enterprises to set up factories near the origin of plants.

Structure of essential oil extraction equipment (500L)

1, electrically heated extraction tank 500L; 2, condenser: coil condenser heat transfer area of 2 square meters; 3, distilled water tank: 400L; 4, aromatic oil acceptance tank: 20L; 5, gas-liquid separator: 20L; 6, oil-water separator: glass silica gel combination; 7, temperature control system: a combination of cylinder control system; 8, centrifugal pumps: 1T / H; 9, pipe filter: 1T / H; 10, Air compressor: 2.2KW; 11, operating platform: stainless steel; 12, others: a number of valves and fittings; 13, equipment and material contact parts: SUS304L

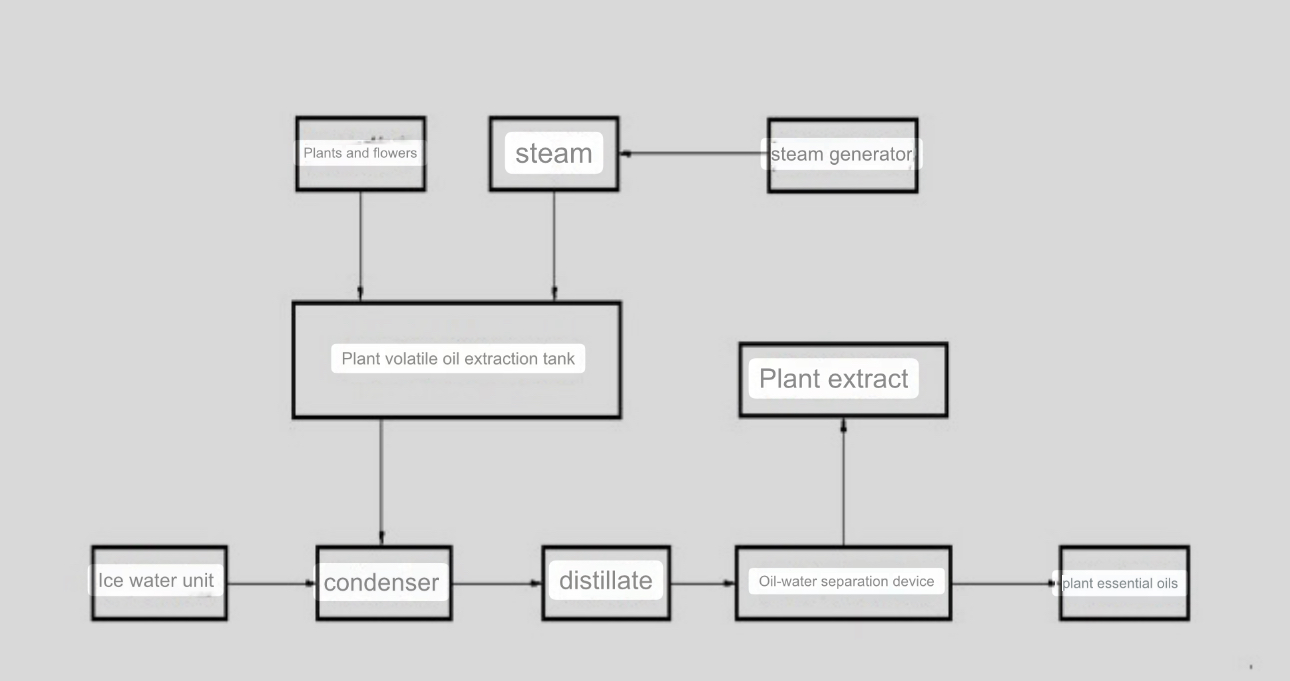

Process flow diagram of essential oil extraction equipment
