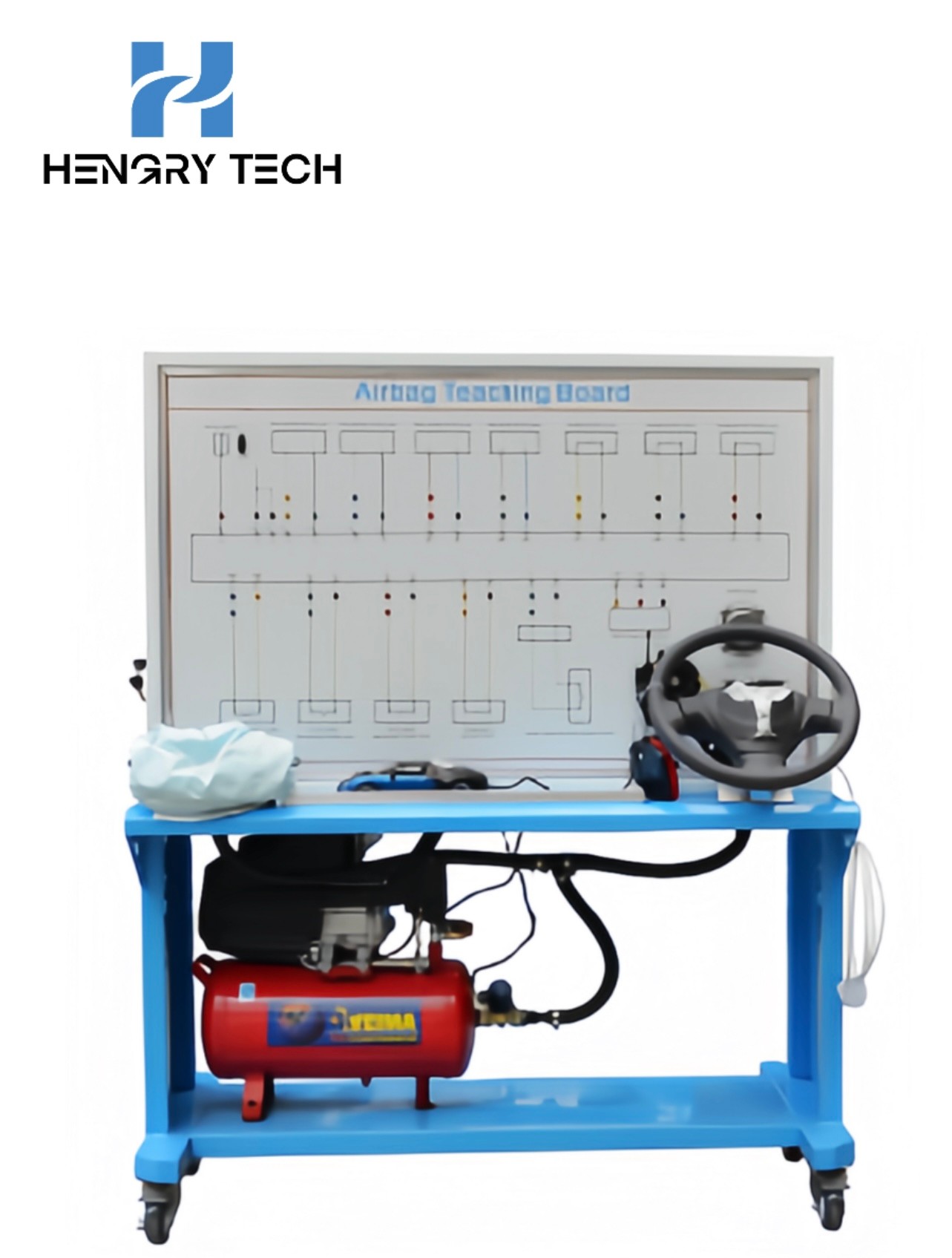

HR-QC15 Airbag Teaching Board

Equipment Overview

This product is suitable for colleges and universities, vocational schools, automobile repair professional teaching use, through the demonstration of this product or practical training practical practice, can let the students faster master the construction and control principle of the automobile airbag system, accelerate the students on the automobile airbag system awareness, belong to the automobile school teaching the ideal auxiliary understanding of the equipment.

Functional characteristics

1, with the related SRS airbag auxiliary system, the system structure is complete, each device runs effectively. Can fully demonstrate the SRS airbag collision, calculation, airbag deployment process simulation.

2, set up a track-type collision simulation car, you can manually control the model car, repeated demonstration of SRS airbag collision, calculation, airbag deployment process simulation.

3, install the original OBDII diagnostic seat, can be connected to a special decoder on the SRS electronic control system for fault code reading, fault code clearing, dynamic data flow reading, waveform analysis and other experiments.

4, with desktop textbooks placed in the area, convenient for placing textbooks, lightweight testing instruments, etc., novel style, more humane, the wheel foot using universal locking nylon wheel foot device, can be fixed / line mobile teaching, the frame surface using metal paint high-temperature baking and spraying, bright colors, long life!

Practical training program

Airbag structure awareness

Crash sensor awareness

Data flow, waveform reading and analysis
