HRA-1805 Robot Automation Control Training System

Equipment Overview

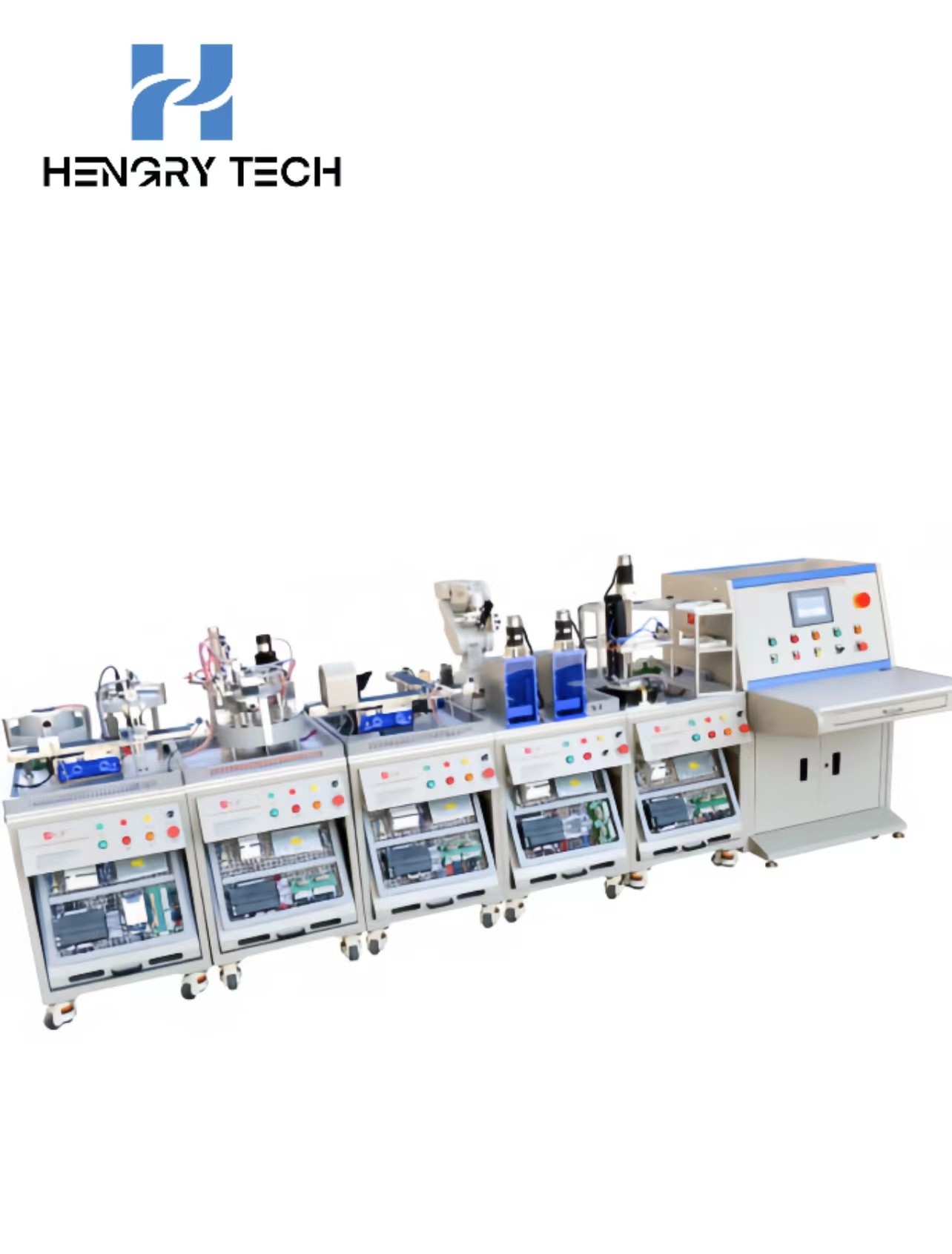

HRA-1805 robot automation control training system is mainly composed of granule loading unit, capping and screwing unit, testing and sorting unit, product quality testing unit, industrial robot handling and packaging unit, intelligent material storage unit and main control unit, including intelligent assembly production system, automatic packaging system, automatic three-dimensional warehouse and intelligent logistics system, automatic testing and quality control system, production process data acquisition and control system and other functions. Process data acquisition and control system and other functions, is a complete intelligent factory simulation device, the application of industrial robotics technology, PLC technology, inverter technology, servo control technology, industrial sensor technology, motor drive technology and other industrial automation technology, can achieve the empty bottle feeding, granular material feeding, material sorting, granular filling, capping, screwing the cap, material detection, finished product sorting, robotic Grab into the box, box cover packaging, labelling, warehousing and other production processes.

The equipment to modular way free combination, line into a variety of combination mode, the operator is not only in the internship, the work of training, training in mechanical assembly and adjustment, electrical and pneumatic connection, programming, industrial robot applications, sensor applications, computer applications, touch screen configuration, stepper drive control and other electromechanical professional skills.

Functional features

4.1 Equipment features:

(1) The equipment adopts floor-standing installation form to ensure the stability and reliability of the equipment, at the same time, the mechanical design part are in the table range, the movement mechanism part of the multi-channel protection device contains a plexiglass protection net, emergency stop control switch and other hard protection.

(2) has good flexibility and diversified working mode, through different collocation application, to achieve a variety of use environment, to meet the requirements of vocational colleges and universities practical training teaching and carry out skills competitions.

(3) Through the process of granule bottling and packaging into the warehouse and other exercises, can deepen the operator's understanding of the principle of work, different workstations to complete the work of diversified can improve the interest of students to use.

(4) Comprehensive system application: the system includes sub-systems such as intelligent assembly production system, automatic packaging system, automatic three-dimensional warehouse and intelligent logistics system, automatic inspection and quality control system, production process data acquisition and control system and so on.

(5) Comprehensive knowledge and skills: the equipment involves industrial robotics application technology, PLC technology, touch screen technology, communication application technology, servo application technology, AC frequency conversion application technology, power electronics application technology, sensor application technology, pneumatic control technology, mechanical assembly and adjustment technology and other mechatronics knowledge performance.

(6) Competition functions and practical training and teaching functions combined: flexible combination of equipment, module expansion is convenient, increase or decrease the functional modules, does not affect the installation of other modules in the wiring. Can be more flexible title output. Equipment standard configuration of five work units, each unit focuses on different knowledge and skills, to facilitate the development of education, while a high degree of modular design, but also to make the repair and maintenance of equipment has become quite simple and more convenient for teaching and training.

Practical training projects

1、Hardware installation and debugging

(1) Industrial robot installation and commissioning

(2) Fixture installation and commissioning technology

(3) Multi-station rotary table installation and commissioning

(4) Conveyor module installation and commissioning

(5) Raw material warehouse installation and commissioning

(6) Three-dimensional warehouse installation and commissioning

(7) Each substation unit installation and commissioning

2, electrical installation and commissioning

(1) Industrial robot and controller electrical connection and commissioning

(2) Industrial machine controller and PLC electrical connection and commissioning

(3) Industrial robot fixture electrical connection and debugging technology

(4) Sensor installation and commissioning

(5) Human-machine interface electrical connection and debugging

(6) gas circuit installation and commissioning

3、Programming debugging and application

(1) Basic operation of industrial robots

(2) Industrial robot basic instruction training

(3) Robot signal configuration and application training

(4) Robot logic judgement programming

(5) Industrial robot palletising operation writing

(6) Establishment and application of industrial robot database

(7) Control of robot movement through I/0 boards

(8) Debugging and application of industrial robots through software

(9) PLC basic instruction application training

(10) PLC and inverter communication technology application training

(11) PLC and drive communication technology application training

(12) PLC and touch screen communication technology application training

(13) PLC and industrial robot communication technology applications

(14) Master and substation unit communication technology applications
