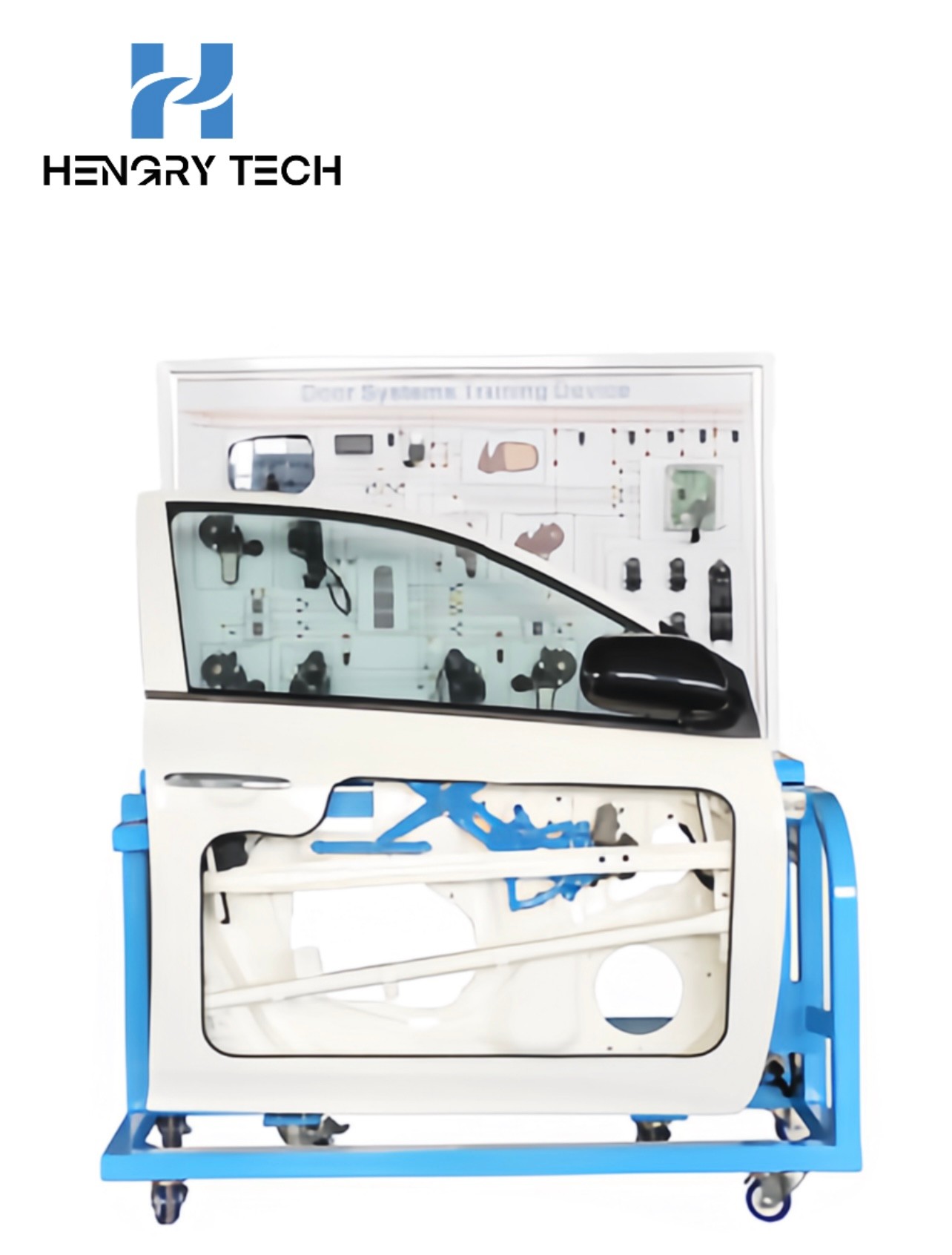

HR-QC17 Door Systems Training Device

Equipment Overview

This product is suitable for colleges and universities, vocational schools, automobile repair professional teaching purposes, through the demonstration of this product or practical training hands-on practice, can allow students to faster master the structure and control principles of the automotive door system, accelerate the students to the automotive airbag system awareness, belong to the automotive school teaching the ideal auxiliary understanding of the equipment.

Functional characteristics

1, installed the original OBDII diagnostic seat, can be connected to a special decoder on the automotive door system for fault code reading, fault code removal, dynamic data flow reading, waveform analysis and other experiments.

2, with desktop textbooks placed in the area, convenient for placing textbooks, lightweight testing instruments, etc., novel style, more humane, the wheel foot using universal locking nylon wheel foot device, can be fixed / line mobile teaching, the framework of the surface of the metal paint high-temperature baking and spraying made of bright colors, long life!

Practical training program

Recognition of automobile door structure

Sensor awareness

Data flow, waveform reading and analysis
