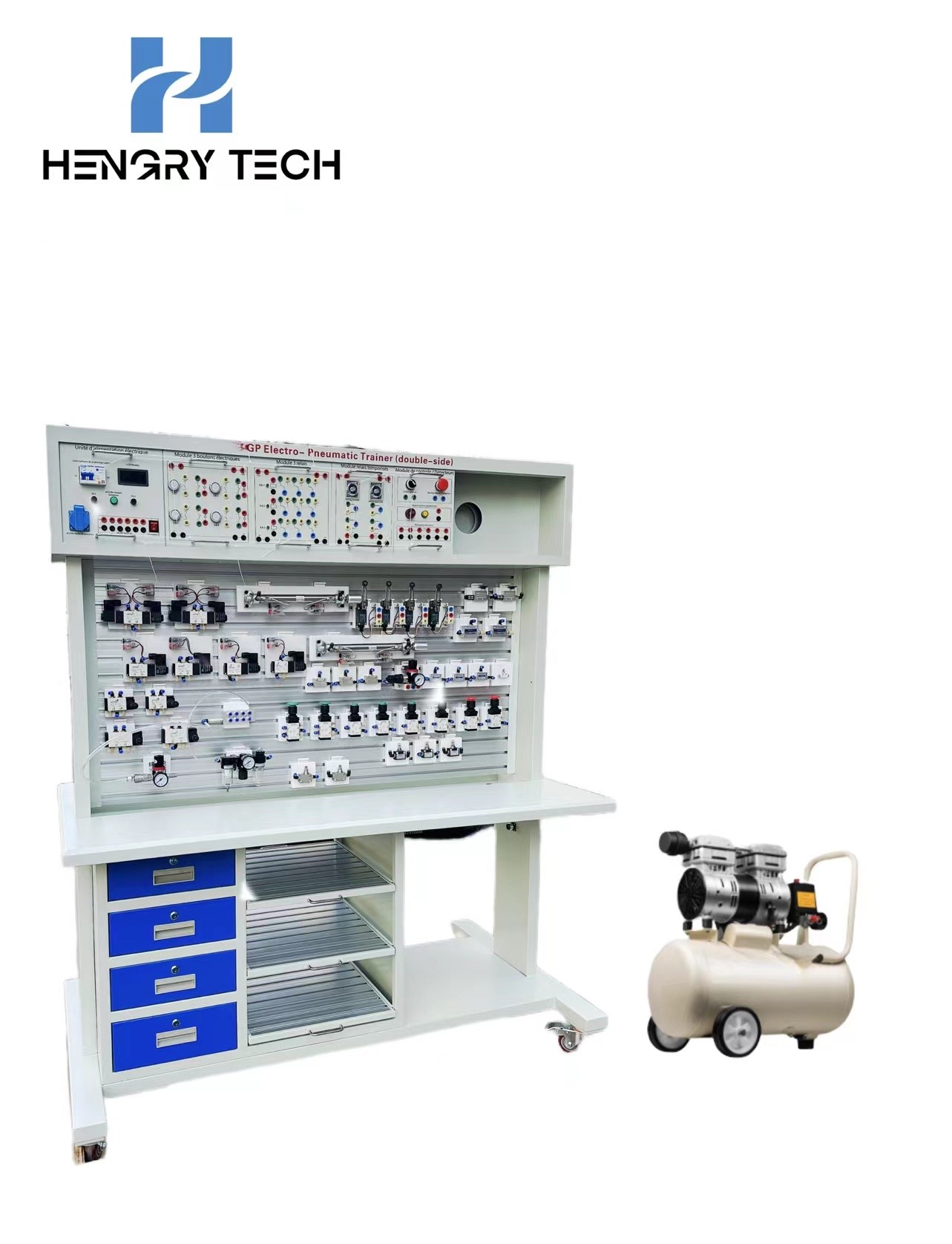

HR-GQ01 Electro-pneumatic tainer Double face

Overview of the training equipment

This practical training equipment, by the training table, pneumatic system circuit training operation panel part, electrical control part of the composition of the electrical part is mainly composed of relay module, power module, button module and other parts. The main frame of the training table is assembled by aluminum and wood structure, the weight of the table frame is light and installed with universal wheels, which can facilitate the movement of the training table. The table is divided into two layers of structure, the top can be placed on the electrical module, the following is the training screen, training screen with grooved aluminum alloy structure, convenient for the installation and removal of the pneumatic components, students can according to the experimental needs of the training screen to build any pneumatic circuit, composed of a certain function of the pneumatic system. The training table adopts modular structure, which is easy to combine and expand, and improves the utilization rate of equipment space, and adopts two-in-one double-sided training operation panel, which is more effective and reasonable use of training space.

This equipment in addition to conventional pneumatic basic control circuit experiments, but also can be simulated pneumatic control technology application experiments, pneumatic technology course design and so on. Pneumatic components and electrical parts of the combination, so as to realize a variety of control modes, that is, gas control, electric control, gas and electricity combined control, etc., gas control and electric control can be combined to form a more complex pneumatic system. This experimental platform can complete the basic principles of various pneumatic components and applications, pneumatic system of gas control, electric control and other different control methods of a variety of circuit experiments.

This pneumatic practical training equipment can complete the practical training projects:

1. direct control of single-acting cylinders;

2. Speed control of double-acting cylinders;

3. double-acting cylinder with the logic function of direct control;

4. Double-acting cylinder or logic function of the control;

5. indirect control of double-acting cylinder with or logic function;

6. Double-acting cylinder with logic function and delay control;

7. Two-hand operation (tandem) circuit control;

8. "Two places" operation (parallel) circuit control;

9. Individual "two-place" operation circuit control with interlock;

10. Single reciprocating circuit control with delayed return;

11. Continuous reciprocating circuit control with double electronically controlled solenoid valves;

12. Multi-cylinder, the main control valve for the single electronically controlled solenoid valve electric - gas control circuit of the delay sequence control;

13. Double-cylinder multi-reciprocating electric-pneumatic joint control circuit control;

14. Continuous round-trip circuit;

15. Single reciprocating circuits with time-delayed returns
