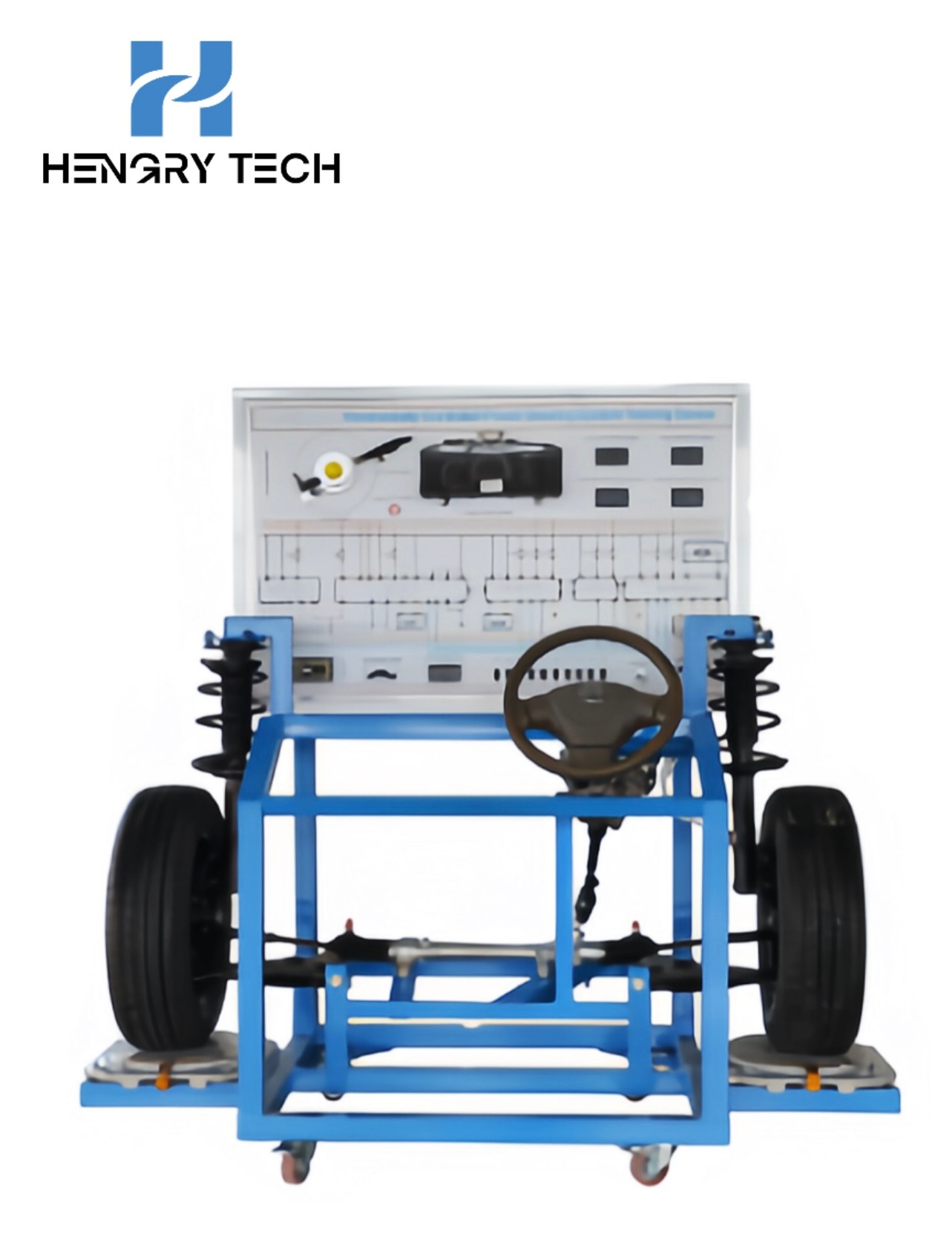

HR-QC09 Electronically Controlled Power Steering System Training Device

Equipment Overview

This product is suitable for colleges and universities, vocational schools, automobile repair professional teaching use, through the demonstration of this product or practical training hands-on practice, can let the students faster to master the construction and control principle of electric power assist, accelerate the students to electric power assist the understanding of the students, belong to the automobile school teaching ideal auxiliary understanding equipment.

Functional features

1, real Toyota electric power steering system in kind, including Toyota electric power steering steering one steering gear, steering control unit, combined instrumentation, engine control unit, front suspension system, steering wheel, steering column, tires and other Fido electric steering system normal working parts. The device rack devices, sensors, actuators are complete and effective. Can image show the structure composition and working principle of electric power assist. Suitable for all middle and high school vocational and technical colleges for students to teach the principle of automotive electric power assisted practical training and practical needs.

2, with 400 * 400mm corner dial to show the size of the steering angle. It can be used for front wheel alignment testing and adjustment. Fully demonstrate the adjustment and role of the three elements of front wheel alignment.

3, the panel is installed with external detection terminals, can be directly detected on the panel of each sensor, actuator, control unit pin electrical signals, such as resistance, voltage, current, frequency signals.

4, installed the original OBDII diagnostic seat, can be connected to a dedicated or universal decoder for code query, read fault codes, data flow, waveform analysis, monitoring changes in operating data, sensors, actuators and electronic control systems to carry out performance, functional testing and analysis.

5, the panel circuit schematic manufacturing process is advanced, the use of high-strength composite aluminum composite panel, laser color spraying technology, high-strength protective film made. Bright color, long service life!

6, the equipment can be set up for a variety of types of circuit failures, to complete the comprehensive skills assessment of students.

Training program

Electronic steering system structure awareness

Recognition and teaching of steering control unit

Power steering system comprehensive diagnosis

Recognition and teaching of each sensor signal

Comparative test of steering system oil pressure change

Knowledge and teaching of cornering dial

Understanding and teaching of tires

Troubleshooting training

Awareness and teaching of combination instrument

Knowledge and teaching of front suspension system
