HRB-504 Intelligent car park integrated monitoring system trainer

Device Overview

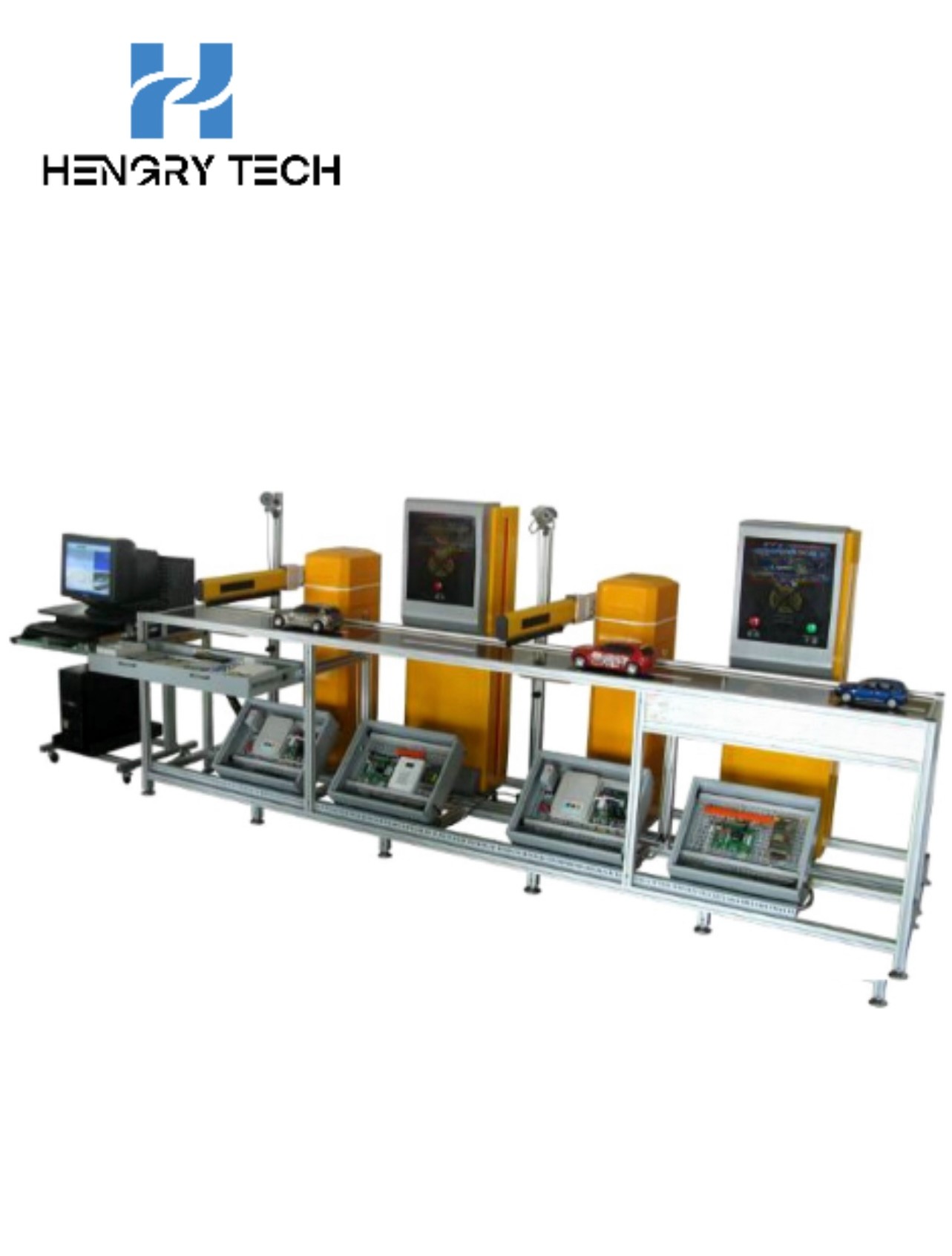

This device is formed by the advanced aluminium profile bracket and real car park management equipment into a complete set of parking garage in and out of the process of teaching training and assessment device, using the market's most mainstream function of the most advanced types of car park equipment, a clear and reasonable structure and a stable operation management system, for demonstration and training to create more favourable conditions. The system separates the mechanical object part of the equipment from the electric control part, and the electric control part is independently installed in the standard mesh-type electric box, and the students can complete the connection of the whole system line through the wiring port, and at the same time, through the function parameter setting and the software operation management, they can realise the whole set of real scenarios of the vehicles from the storage, in the storage to the storage, and at last, through the BACnet bus network, they can integrate the system with the monitoring and control, and the students can understand more deeply the modern intelligent parking process teaching and assessment device. Students can more deeply understand the technical points of the modern intelligent car park integrated monitoring system.

Intelligent car park management system is a non-contact smart card for vehicles entering and leaving the car park credentials, vehicle image comparison, document capture management as the core of the multimedia integrated vehicle charging management system, for the car park lanes entrance and exit management equipment to implement automatic control, the vehicles parked in the car park in accordance with the pre-set charging standards for the implementation of automatic charging, the system will be advanced smart card recognition technology and high-speed video image storage comparison combination The system combines the advanced smart card recognition technology and high-speed video image storage comparison, through the computer image processing and automatic identification, the vehicle in and out of the car park charges, storage and management of a full range of management. The LED display screen can be programmed and taught to change the display content through software. With powerful data processing function, it can set the name kind of control parameter in car park management, smart card loss and recovery can be classified query, and can manage the car park data. Through this function, the shape and licence plate number of the vehicle entering the car park can be recorded and saved in the server database, when the vehicle is out of the car park, the image of the vehicle recorded at the exit and the image of the vehicle recorded at the entrance will automatically appear on the screen, and the operator can compare the vehicle out of the car park with the smartcard number recorded in the server and the image of the vehicle recorded, and after determining that the card number, the shape of the vehicle and the licence plate number are in accordance with the record, the operator can start the automatic road gate to raise the gate lever. After determining that the card number, licence plate number, etc. match with the record, the automatic road gate will be activated to raise the gate pole and release the vehicle. The management system is safe and reliable. Including vehicle personnel identification, vehicle data management, vehicle access, location tracking and fee management.

The use of this equipment enables students in the physical model platform "intelligent car park integrated monitoring system" for installation, wiring, programming, configuration, integration, debugging, operation and maintenance operations, so as to understand the application of each part in practice and master its fundamental technical points.

Practical training projects

1. System installation, wiring, wiring, programming, commissioning, operation, maintenance and repair;

2. System as-built drawings and control electrical schematic drawings;

3. Intelligent car park integrated monitoring system structure and principle of knowledge training;

4. Knowledge and mastery of various types of intelligent car park management system equipment training;

5. System device connection and debugging training;

6. digital vehicle detector setup, debugging and operation training;

7. knowledge, issuance and management of smart cards of different functional nature (monthly card, stored value card, free card and temporary card);

8. image comparison processing system installation, setup, debugging and operation training;

9. system management software setup, operation and management of practical training;

10.LED display screen display programme writing training;

11. Comprehensive operation, exercise and management training of intelligent car park integrated monitoring system;

12.DDC installation, wiring and commissioning training;

13. Based on BACnet bus network data communication and real-time monitoring training;

14. Integrated monitoring and management training based on intelligent building integrated monitoring software.
