HRE-204 Junior Maintenance Electrician Trainer

Equipment Overview

This equipment is suitable for vocational schools of electromechanical equipment installation and maintenance, electromechanical technology applications, electrical operation and control, electrical technology applications, electronic and electrical applications and maintenance of professional "motors and their control", "motors and drag", "motors and transformers" and other courses and non-electromechanical professional mandatory course module or elective course module "motor control circuits", "machine tool circuit repair" teaching and practical training.

This equipment is also suitable for technical schools electromechanical professional "electrical equipment maintenance" course practice, but also suitable for vocational training schools, installation, maintenance of electricians beginner and intermediate classes of training and practical exercises.

Equipment structure

1. Overall structure:

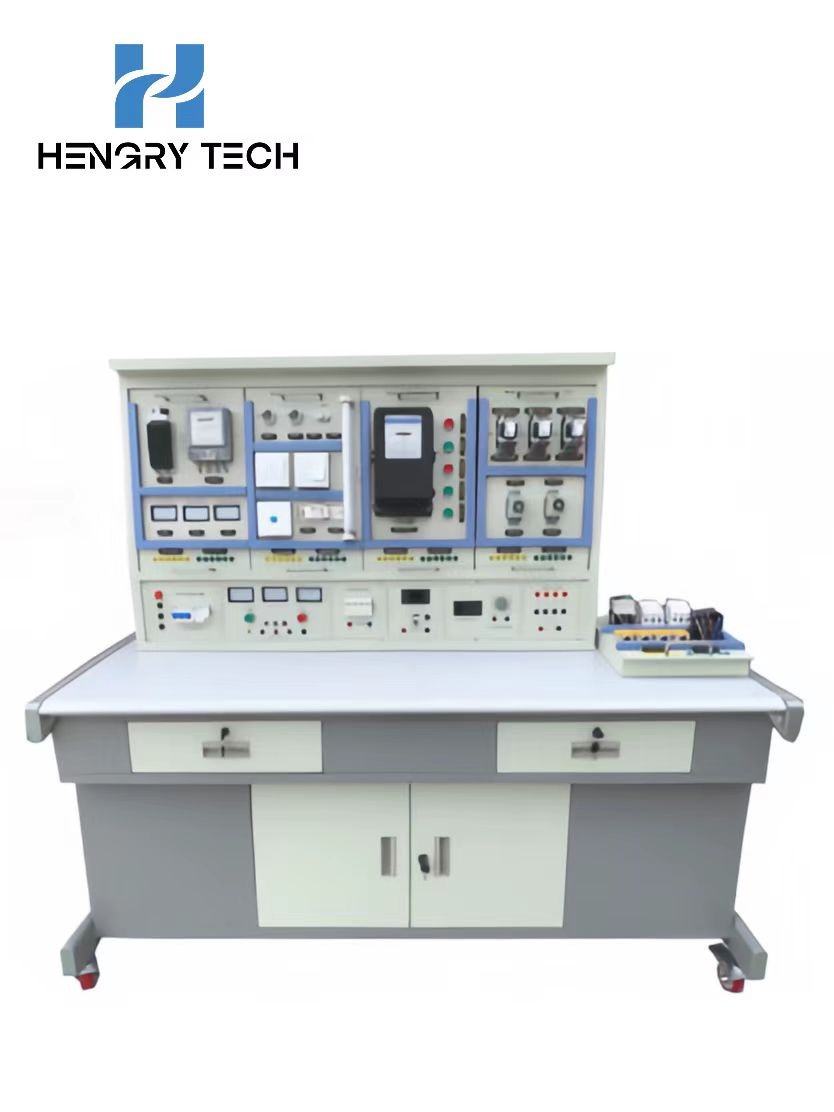

This practical training table consists of three main parts: upper bracket/training screen (built-in power supply), practical training table and practical training storage cabinet. Oxidation treatment of high material 35mm × 35mm aluminium alloy as the main connecting material of the equipment; both sides and the power supply box is made of hemp black 15mm laminate; stainless steel tubing on the bracket and the power supply box on the aluminium alloy groove combination of general maintenance electrician pegboard fixing structure, change the content of the practical training needs to be moved to move the pegboard, can be convenient in the groove sliding, in order to better match the practical training; desktop The desktop adopts 25mm hemp grey high-density laminate sealing special, effectively improve the insulation level; training locker using standard structure and drawer type for storing tools and training materials, the right side of the sliding door design can store two general hanging boards at the same time.

2. Equipment features:

This equipment is mainly aluminium and wood, the frame is strong and beautiful and generous, according to the teaching and practical training requirements hanging different hanging boards, able to complete the teaching of a wide range of content, practical training projects, flexible use, dual-station design can be achieved at the same time two trainees practical exercises, assessment, power independent of each other do not interfere with the training frame as the basis for hanging boards as accessories, to facilitate the expansion of the content of the practical training, updating, such as equipped with the answering machine, on the computer ( Schools own or on behalf of the purchase or purchase), intelligent machine tools to assess the pegboard with the ability to achieve intelligent machine tool training and assessment, failure point generation using computer network technology, the assessment system automatically complete the scoring, restore the fault and other functions. This training table can be used with all the Yalong maintenance electrician common board.

Practical training projects

1. Lighting circuit installation training;

2. Installation of fluorescent lamps;

3. motor pointing and continuous rotation circuit connection training;

4. Push-button interlocked motor forward and reverse circuit connection training;

5. contactor interlocking motor forward and reverse circuit connection training;

6. training of motor forward and reverse circuits with double interlocking of contactor and push button;

7. training of motor stator winding series resistance starting control circuit connection;

8. training on the connection of Y-△ start control circuit switched by push button;

9. time relay switching Y-△ start control circuit connection training;

10 motor half-wave rectifier energy braking control circuit connection training;

11. Motor full-wave rectifier energy braking control circuit connection training;

12. Motor reverse braking control circuit connection training;

13. Motor round trip control circuit connection training;

14 motor sequential start control circuit connection training;

15. Motor timing operation control circuit connection training;

16. Push-button switching of two-speed motor control circuit connection training;

17. time relay switching two-speed motor control circuit connection training;

18. Simple production machinery electrical control circuit connection training;
