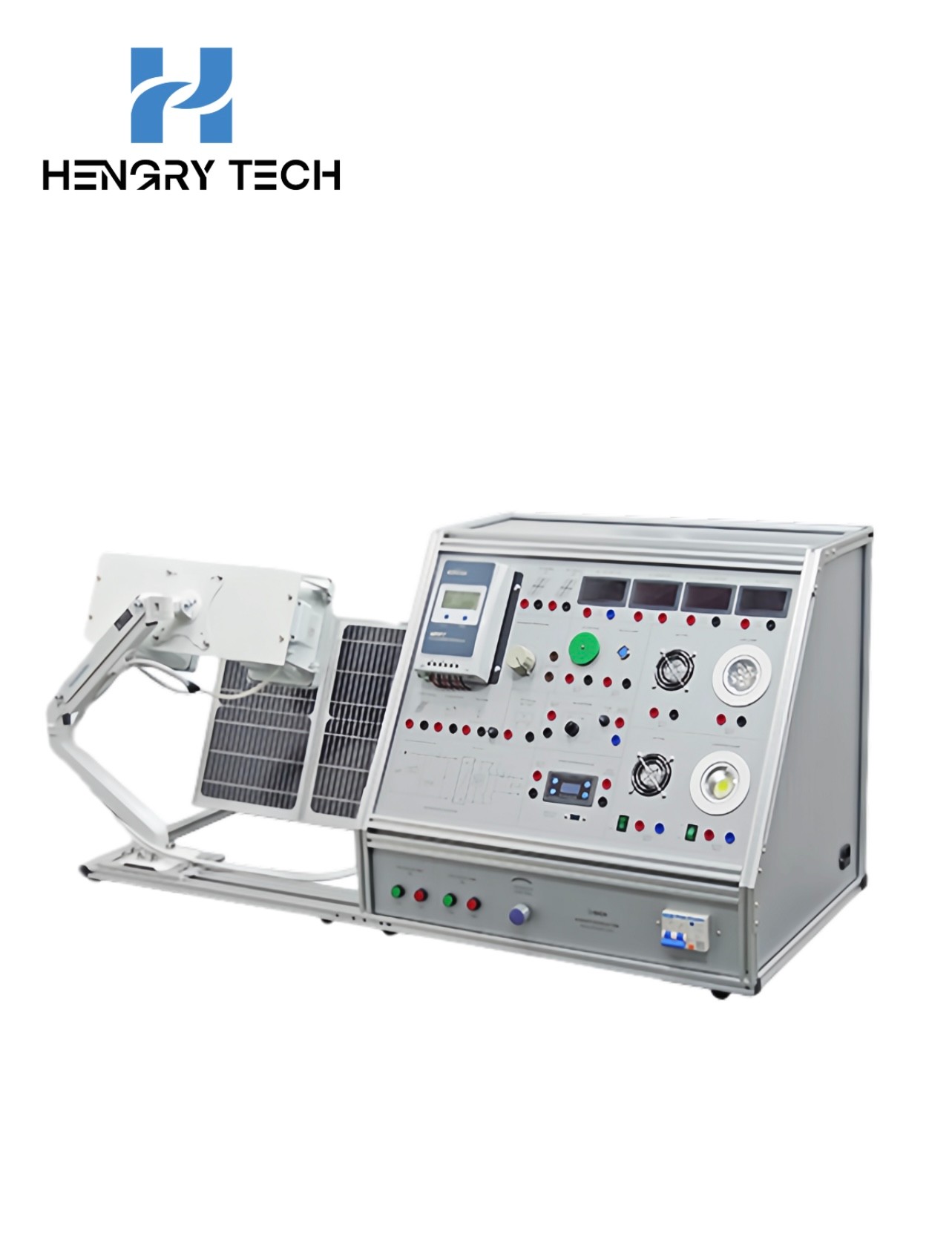

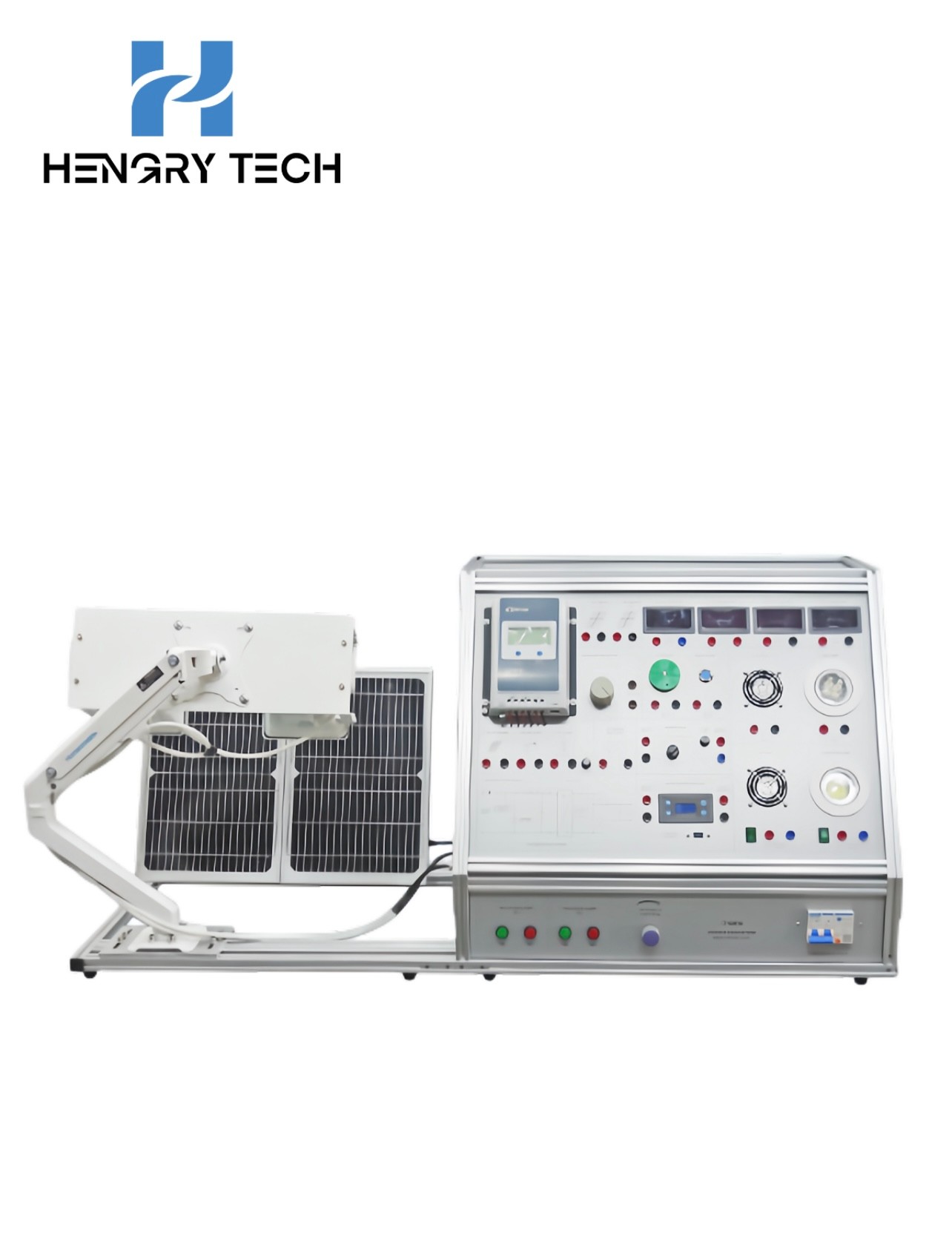

HRN-1204 Tabletop Solar Power Generation Trainer

Equipment overview

*  The unit demonstrates the practical application of such a combined system for student to conduct the investigation of photovoltaic generation.

*  The light intensity can be controlled by rotary knob on panel, by using six-freedom type mechanical support, the height / distance / angle of light source can be adjusted easily to allow investigation of solar panel under different working conditions, so as to achieve system performance inside the laboratory irrespective of outside conditions.

*  Maximum power point tracking type solar charge controller is adopted for the high efficiency power generation control and monitoring, with LCD screen for the display of system voltage / current / power.

*  Dedicated instrumentation includes, AC/DC voltmeter and ampere meters for investigation of system efficiency and characteristics..

Training program

*  Solar panel open circuit voltage test

*  Solar panel short circuit current test

*  Solar panel iv characteristic test experiment

*  Solar panel maximum power output characteristics experiment

*  Solar panel transfer efficiency experiment

*  Solar panel PV characteristics experiment

*  Load power supply experiment

*  Storage battery charging experiment

*  Solar panel output voltage test under different height / angle / intensity

*  DC resistive and inductive load experiment

*  AC resistive and inductive load experiment

*  Integrated load experiment
