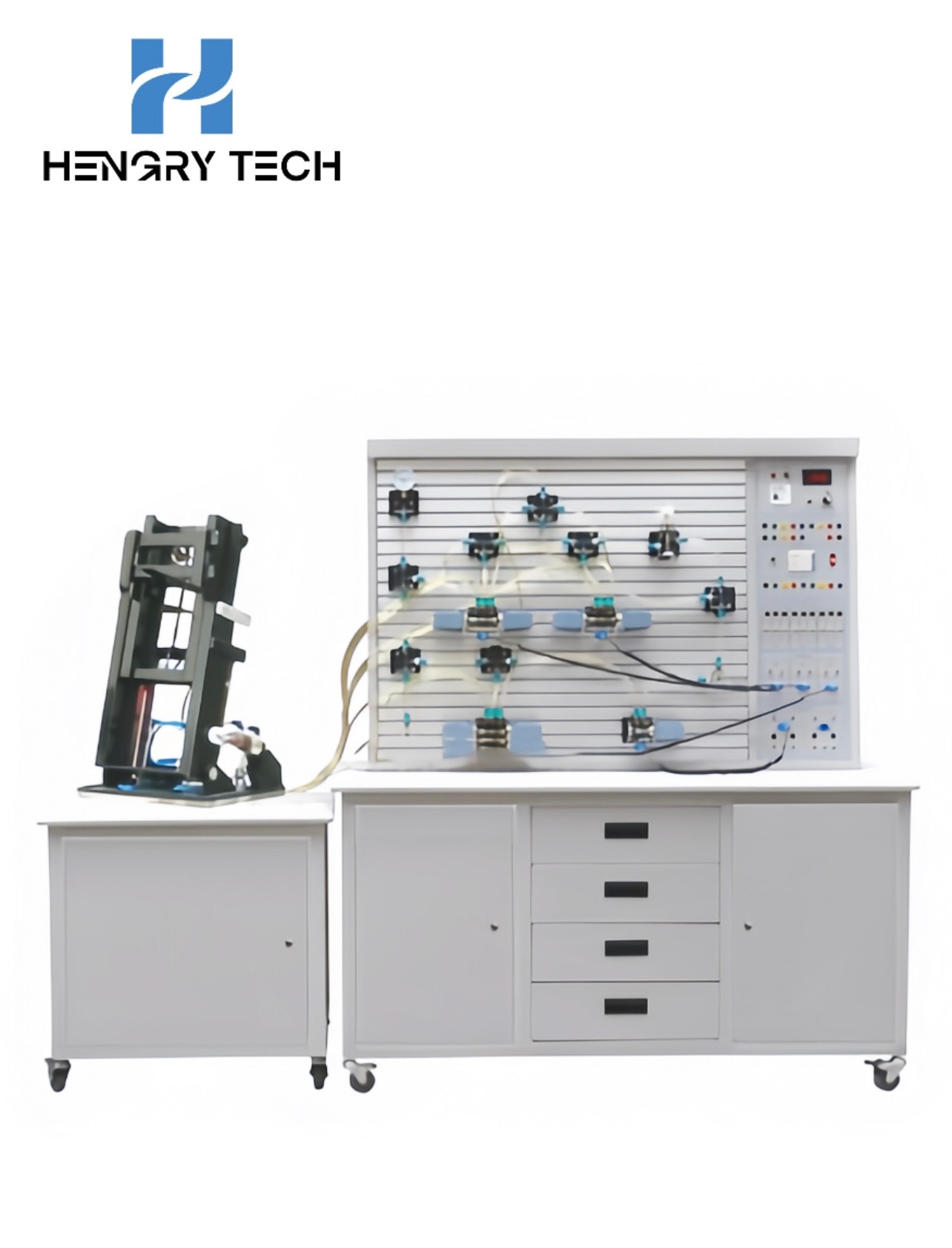

HR-GY03 PLC controlled transparent hydraulic forklift trainer

Overview:

Hydraulic forklift is a kind of high lifting loading and unloading and short distance transportation dual-purpose vehicle, due to the non-sparking and electromagnetic field. It is especially suitable for automobile loading and unloading as well as loading and unloading transportation of flammable, explosive and fire-prohibited goods in workshops, warehouses, docks, stations, freight yards and other places. The product is characterized by lifting and balancing, flexible rotation, convenient operation and so on. Easy to operate and other characteristics.

Main features.

1, transparent hydraulic PLC control training device (forklift hydraulic training table) is mainly composed of training table, control training table, forklift training table, hydraulic components and electrical control devices, programmable controller (PLC) and other components.

2, transparent hydraulic PLC control training device (forklift hydraulic training table) is the structure of the hydraulic forklift principles can be moved to the classroom to learn a modern teaching products, forklift body is made of imported transparent plexiglass, corrosion-resistant, good resistance to abrasion, long-lasting discoloration, transparent and intuitive, demonstration of the effect of realism.

3, the cabinet body is made of 1MM thick SPCC cold rolled board, sturdy and beautiful, the surface of the medium-temperature phosphating antirust paint, electrostatic spraying.

4、The cabinet is equipped with four universal wheels, which is convenient for the transportation and dismantling of the equipment.

5、Equipped with all commonly used hydraulic components: each hydraulic component is equipped with a mounting plate, which can be easily and casually placed in the hydraulic components on the aluminum alloy panel (panel with a "T" groove in the form of aluminum alloy profile structure). The oil circuit is connected by quick-change joints, which is easy to dismantle and does not leak oil.

6, the main electrical control unit using PLC programmable controller control, can be communicated with the PC microcomputer to achieve intelligent control of the microcomputer, and at the same time to the hydraulic circuit as the control object, to strengthen the PLC control programmable controller learning and application.

7, the experimental control unit can also use independent relay control unit for electrical control, through comparison, highlighting the superiority of PLC programmable control and advanced, deepen the understanding and mastery of the PLC programmer.

Learning Objectives.

1, to understand the basic structure of the hydraulic forklift

2, to understand the hydraulic forklift transmission system

3, learning hydraulic forklift hydraulic system

4, learning hydraulic forklift manual control principle

5, learning hydraulic forklift automatic control principle

Experiment content.

1, the real demonstration of the hydraulic forklift action up

2, the real demonstration of hydraulic forklift action down

3, the real demonstration of the hydraulic forklift truck movement forward

4, the real demonstration of hydraulic forklift action tilt back
