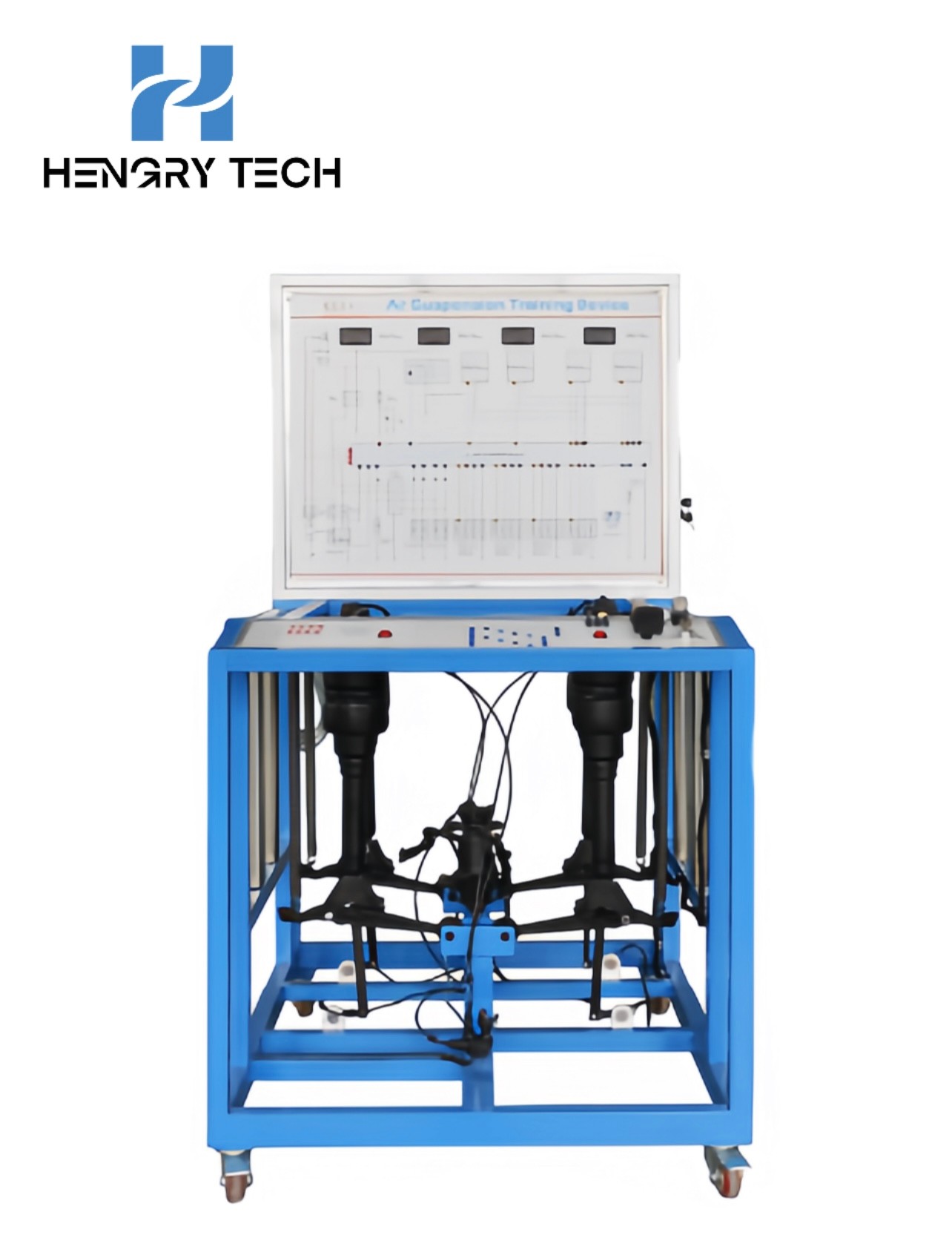

HR-QC08 Air Suspension Training Device

Equipment Overview

This product is suitable for colleges and universities, vocational schools, automobile repair professional teaching purposes, through the demonstration of this product or practical training practical practice, can let the students faster to master the structure and control principle of electronically controlled air suspension system, accelerate the students on the electronically controlled air suspension system, belong to the automobile school teaching the ideal auxiliary understanding of the equipment.

Functional features

1, the equipment adopts electronically controlled air suspension suction filter, compressor with motor, check valve 1, air dryer, check valve 2, check valve 3, pipe, exhaust filter, pneumatic exhaust valve, exhaust valve, air pump, suspension column valve 1, suspension column valve 2, left rear air spring, right rear air spring, left front air spring, right front air spring, level sensor, control unit, speed sensor. OBD diagnostic seat, ignition switch and other original Audi electronically controlled air suspension running accessories. Extra teaching aids panel circuit schematic diagram, extra line detection terminals, LCD digital table, fault simulator, removable stand, supporting manuals and so on.

2, real automobile electronically controlled air suspension system in kind, can show the image of electronically controlled air suspension system structure and working principle. It is suitable for all middle and high vocational colleges to teach students the principle of automobile electronically controlled air suspension practical training and practice needs.

3, the equipment is equipped with steering angle sensor, real simulation of steering to the role of air suspension, not detached from the original car, but also to achieve higher teaching purposes.

4, corresponding to the model panel schematic diagram, installed with external detection terminals, sensors, actuators and electronic control units can be carried out on the voltage, resistance, current and other testing and maintenance training.

5, the original car OBDII diagnostic seat, can be connected to a special decoder on the electronic air suspension electronic control system for fault code reading, fault code clearing, dynamic data flow reading, waveform analysis and other experiments.

6, the equipment can set up a variety of types of circuit failures, to complete the comprehensive skills assessment of students.

Training program

1,Air suspension system awareness

2,Air suspension troubleshooting training

3,Each actuator awareness and test

4,The awareness and testing of each sensor

5,ESP troubleshooting training

6,Air suspension self-diagnosis training

7,Air suspension operation process and phenomenon analysis

8,Air suspension raising and lowering test
