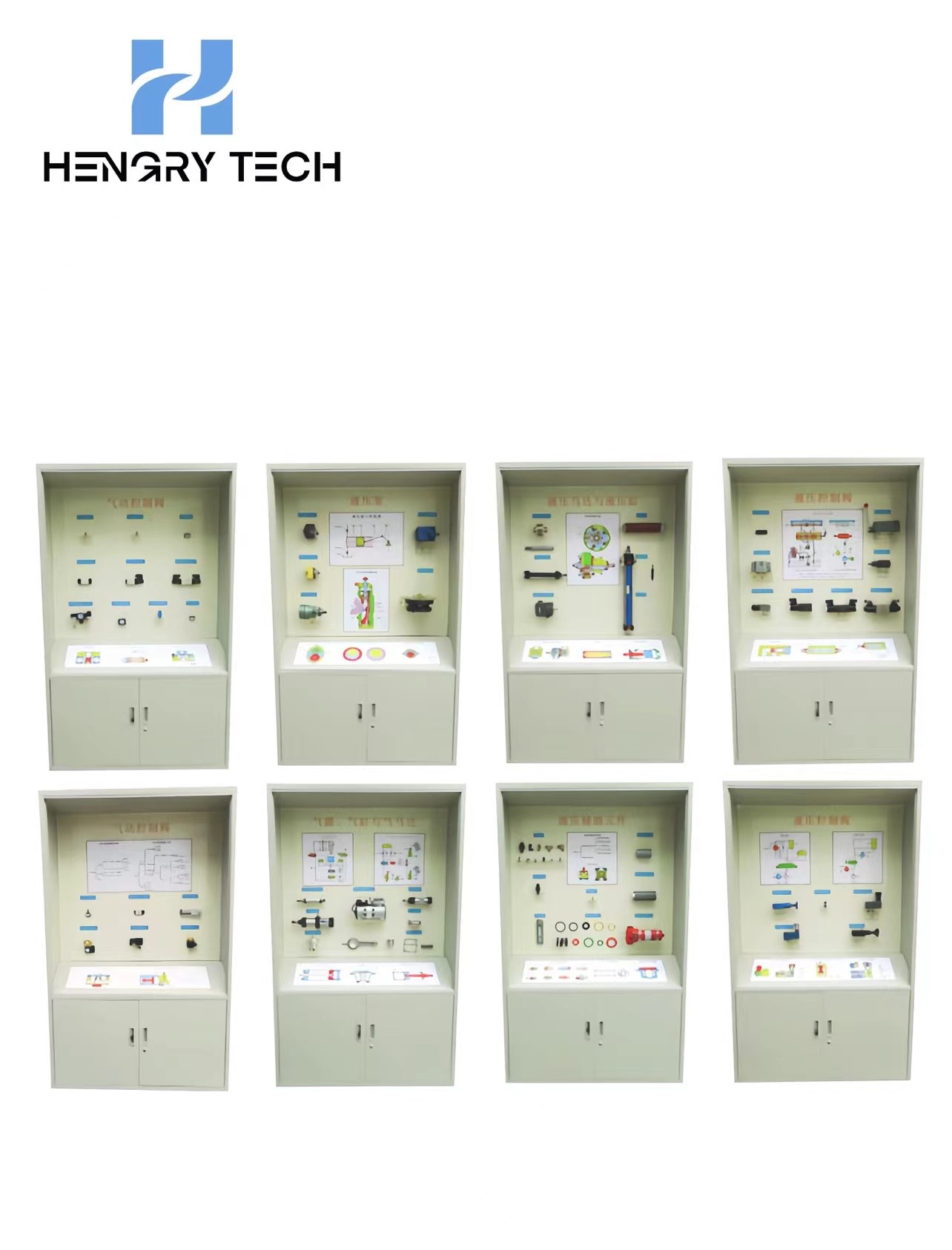

HR-Y01 Pneumatic and hydraulic teaching display cabinet

Display case specifications
1. Each model in the display case is equipped with a text label;
2、The display case is designed with illustrative thinking questions for inspirational or exploratory teaching;
3、The models in the display cabinet are mainly made of real objects and PVC refined;
4、The cabinet is welded with SPCC cold rolled plate, which is solid and beautiful.
5、Input voltage: AC220V, power 400W.
6、Outer size of single display cabinet: 1100×450×1900mm (L×W×H).

Product Description:

Overview of Pneumatic and Hydraulic Display Cabinet

Pneumatic and hydraulic teaching display case is to meet the teaching needs of universities and colleges, according to the relevant teaching materials designed for the preparation of modern teaching equipment, which is mainly in kind or model and the necessary graphic materials to show the basic types of cylinders, control valves, hydraulic pumps, motors, control valves, and other related components of the basic types and basic structure.

Display content

Cabinet 1 Hydraulic pump

Cabinet 2 Hydraulic motors and cylinders

Cabinet 3 Hydraulic control valves (1)

Cabinet 4 Hydraulic control valves (2)

Cabinet 5 Hydraulic auxiliary components

Cabinet 6 Air Cylinders & Air Motors

Cabinet 7 Pneumatic Control Valves (1)

Cabinet 8 Pneumatic Control Valves (2)
