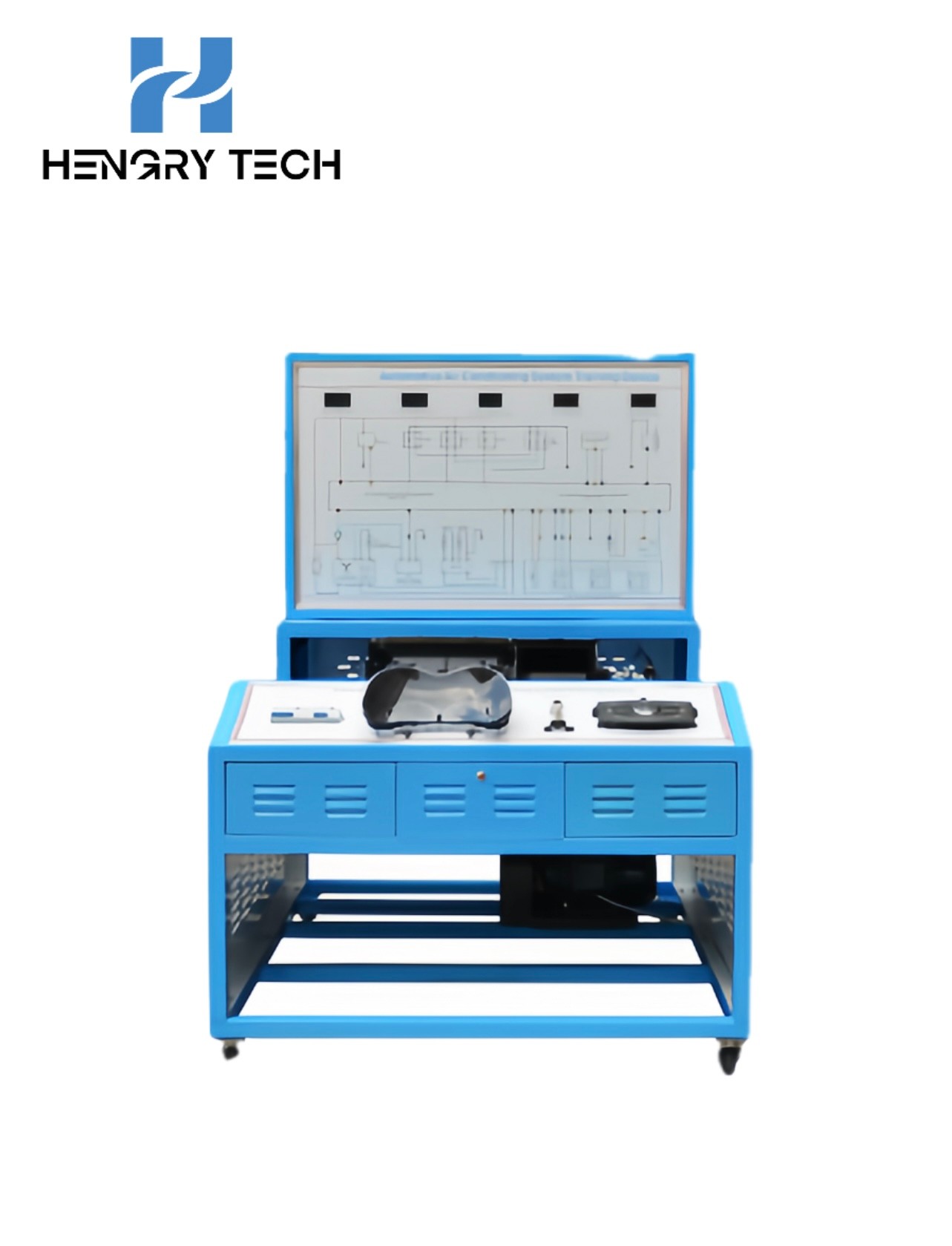

HR-QC06 Automotive Air Conditioning System Training Device

Equipment Overview

This product is suitable for colleges and universities, vocational schools, automobile repair professional teaching purposes, through the demonstration of this product or practical training practical practice, can let the students faster master the automobile automatic air conditioning system structure and control principles, accelerate the students to the automobile automatic air conditioning knowledge, belong to the automobile school teaching the ideal auxiliary understanding of the equipment.

Functional features

1, the equipment adopts the brand-new original car automatic air-conditioning system components, including air-conditioning compressor, condenser, evaporator, drying bottle, expansion valve, blower, control system components, ignition switch and other automobile automatic air-conditioning system normal working devices. According to the original car operation, dynamic demonstration of automatic air conditioning refrigeration process, can fully demonstrate the structure of the automobile automatic air conditioning system composition and working principle, suitable for higher and middle automobile colleges and training institutions for the students of the automobile automatic air conditioning system of the theoretical teaching and practical training and practical operation needs.

2, the corresponding Passat automatic air conditioning circuit panel diagram, the use of high-strength composite aluminum composite plate, laser color spraying technology, the figure is installed on the external detection terminals, can be directly detected on the panel of the sensors, actuators, control unit pins of the electrical signals, such as resistance, voltage, current, frequency signals and so on.

3,The surface of the frame is made of metal paint sprayed by high temperature baking, with bright color and long life!

4, with OBDII diagnostic seat, can be connected to a dedicated or universal decoder for code query, read fault codes, data flow, waveform analysis, monitoring changes in operating data, to carry out sensors, actuators and electronic control system performance, functional testing and analysis.

5, set the power leakage switch, you can turn on / off the power supply at any time, with DC12V power instead of battery, eliminating the trouble of battery charging, more humanized design, easy to use, the table frame surrounded by high-quality cast iron protection network, the table frame style is new, the structure of the safe and reliable, to ensure that the use of teaching and safety.

Practical training program

1, Air conditioning system structure understanding

2,Air conditioning system leakage detection experiment

3,Refrigerant discharge and charging experiment

4,Comprehensive testing and analysis of air conditioning system

5,Query and clear fault code

6,Air conditioning system high and low voltage measurement

7,Air conditioning system component signal analysis

8,Air-conditioning system executive component test and diagnosis
