Technical Parameters 1. Power input: single-phase three-wire AC220V 50Hz; 2. Working environment: altitude <1000m; temperature -10℃～+40℃; humidity <95%RH 3. Door machine: permanent magnet synchronous frequency conversion door machine; 4. Door machine motor rated voltage: AC100/125V; 5. Rated speed of door machine motor: 180r/min; 6. Rated power of door machine motor: 43/94W; 7. Weight of the whole machine: ≤600KG; 8. External dimensions: 2240mm×1640mm×3000mm (L×W×H).
Product Overview
This device is a platform for practical training and assessment of elevator door mechanism developed according to the current demand for the installation and maintenance of real elevator door mechanism. It is suitable for elevator related professions such as elevator installation and maintenance, building automation, electromechanical automation, etc. in vocational colleges and technical schools, as well as vocational qualification appraisal centers and training and assessment institutions.

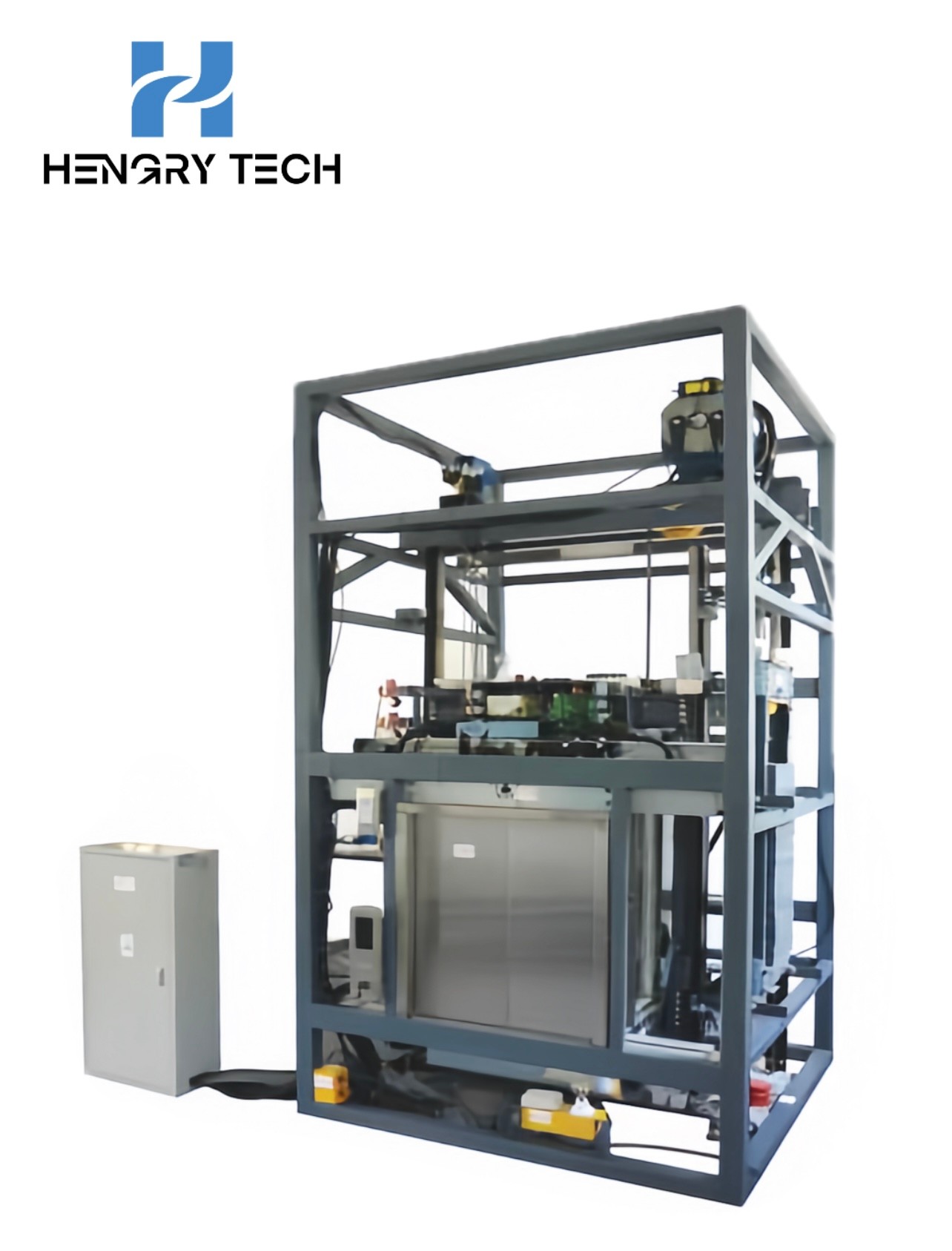

The device is mainly composed of steel structure frame, electric hoist, door frame, floor door fan, floor door floor, floor door upper can, car gantry, car door fan, car door floor, door machine, guide rail, guide rail bracket, guide boot and other components. According to the instructions of the random document information, students install and adjust in the steel structure frame to make it conform to the relevant specification requirements of the elevator door system. And through the up and down movement of the car frame to simulate the operation of the car in the shaft, when the level, the door mechanism can drive the car door and the floor door open and close, after the car leaves, the floor door closed. In addition, it enables students to visualize all the devices of the door mechanism and the whole mechanical action process, which more effectively helps students master its working principle.
Practical training program
1. Installation and adjustment of guide rail bracket and guide rail;
2. Installation and adjustment of the elevator floor door floor;
3. Installation and adjustment of elevator car door floor;
4. Installation and adjustment of elevator floor door frame;
5. Installation and adjustment of elevator floor door upper cantilever;
6. Installation and adjustment of elevator floor door fan;
7. Installation and adjustment of door machine;
8. Installation and adjustment of elevator car door;
9. Installation and adjustment of door cutter;
10. Adjustment of elevator floor door floor and car door floor dimensions;
11. Setting and debugging of elevator door machine parameters;
12. debugging of elevator door opening and closing;
13. Maintenance of elevator door system
