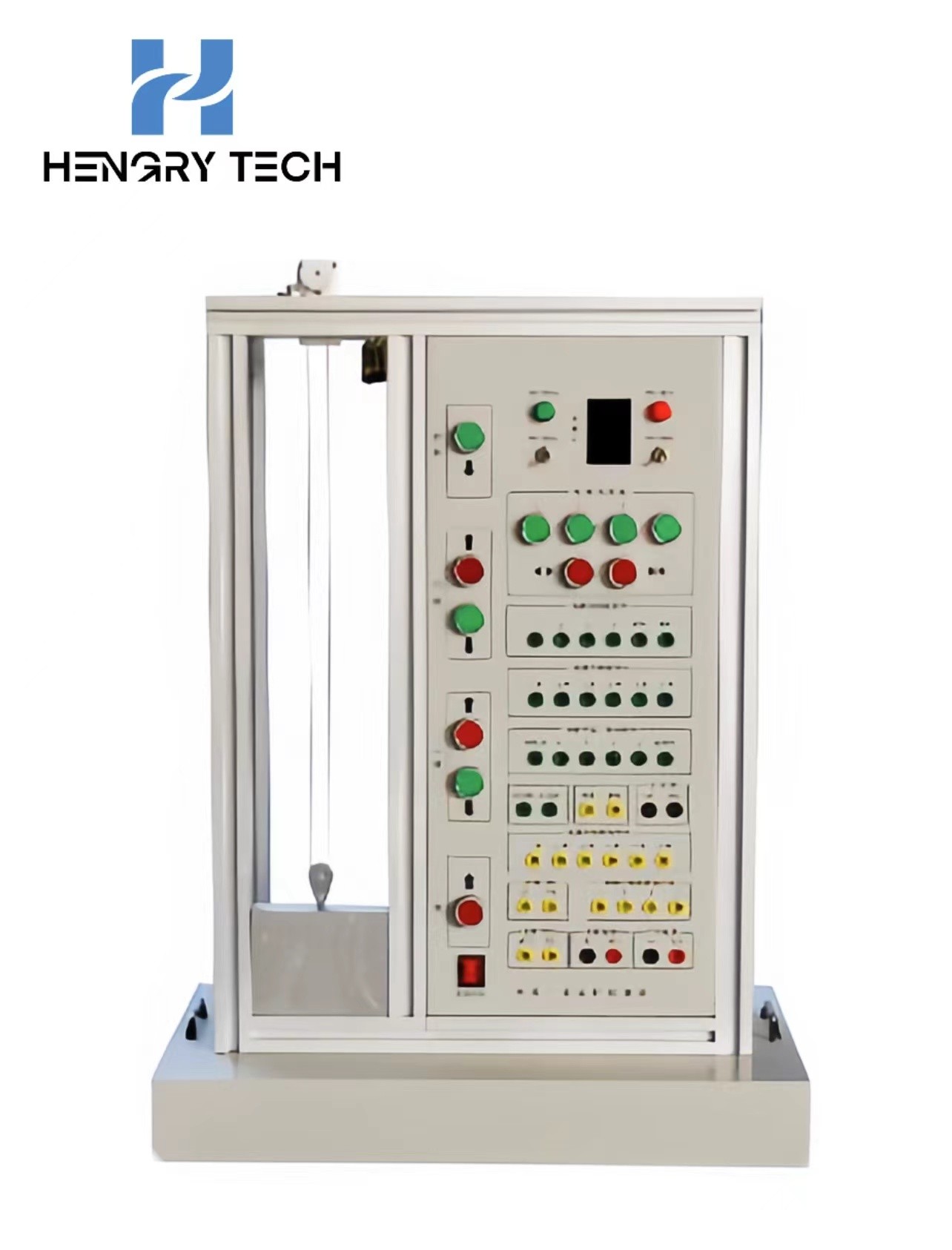

HR-DT07 Four-floor elevator training model

Equipment Overview

HR-DT07 Four-floor elevator training model is the supporting equipment of our programmable control training series device, you can design all kinds of elevator control training projects on the device, the device adopts the linking method of safety wiring, which is easy to install and dismantle; the model is reasonably designed to facilitate the students to connect the wires and wiring. The whole module is small in size and light in weight, which is convenient to expand to other practical training stations.

The equipment can complete the elevator control unit training projects: automatic leveling; automatic door opening and closing instructions; manual advance door opening and closing; downward ladder cut-off, the farthest end of the reverse ladder cut-off; upper and lower limits; interlocking protection of the floor door and other projects.

Training program

(1) Programmable controller advanced instruction programming practical training;

(2) Sensor application technology practical training;

3) single elevator control technology;

4) single equipment group application technology;

5) coil interlock protection;

6) upper and lower limit protection;

7) Remote control technology;

8) Assessment and practical training options;

(9) can be based on the written program for the actual wiring, has a strong practical;

(10) Four floors of elevator control practical training.
