HRB-501 Fire sprinkler integrated monitoring and control training equipment

Device Overview

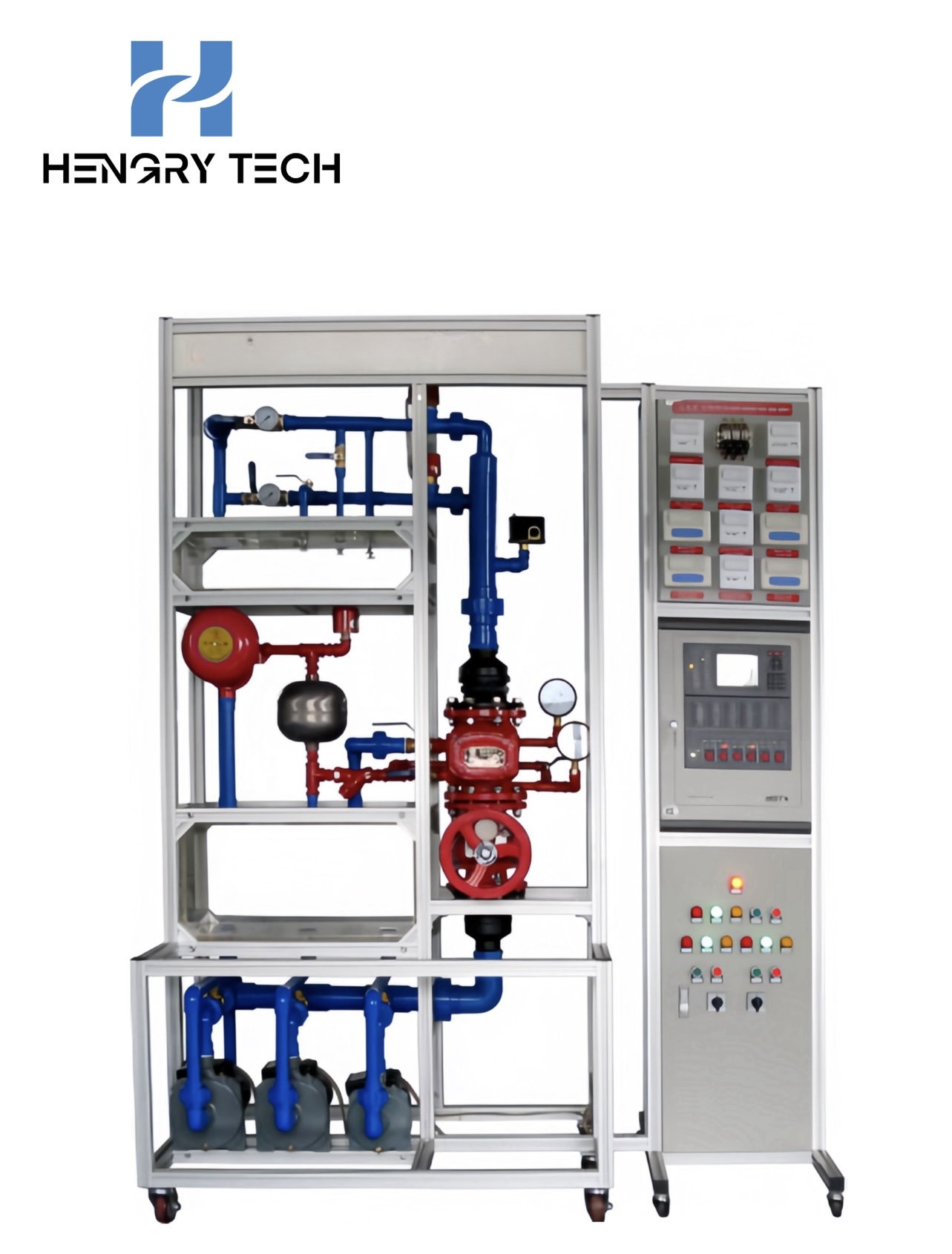

The device adopts advanced aluminium profile frame open structure design, mainly consists of wet alarm valve, signal gate valve, hydraulic alarm, water delayer, various types of sprinkler heads, booster pumps, constant pressure pumps, pressure switches, water flow indicators, pressure gauges, end of the water test device, transparent organic glass water tanks, water pump control box, fire alarm controllers, linkage control module, DDC controllers based on the BACnet bus network, Hand valve and various types of water pipes and other components.

The use of this device enables students in the physical model platform "fire sprinkler integrated monitoring system" for installation, wiring, programming, configuration, integration, debugging, operation and maintenance operations, so as to understand the application of each part in practice and master its fundamental technical points.

Practical training projects

1. System installation, wiring, wiring, programming, commissioning, operation, maintenance and repair;

2. System as-built drawings and control electrical schematic drawings;

3. Knowledge and mastery of automatic sprinkler system components and raw materials;

4. Piping pressure test and water test;

5. fire state automatically and manually start the sprinkler system simulation training;

6. Spraying practical training of different types of nozzles;

7. Practical training on the testing of unterminated water-testing devices;

8. knowledge, mastery and operation of pump electrical control principles;

9. installation and connection of fire alarm controller and short-circuit isolator;

10. configuration and programming of fire alarm controllers;

11. design and operation of electronic coding;

12. Manual/automatic linkage control;

13. Networking training of automatic sprinkler system and fire alarm controller;

14. DDC installation, wiring and commissioning training;

15. Based on the BACnet bus network data communication and real-time monitoring training;

16 integrated monitoring and management training based on intelligent building integrated monitoring software.
