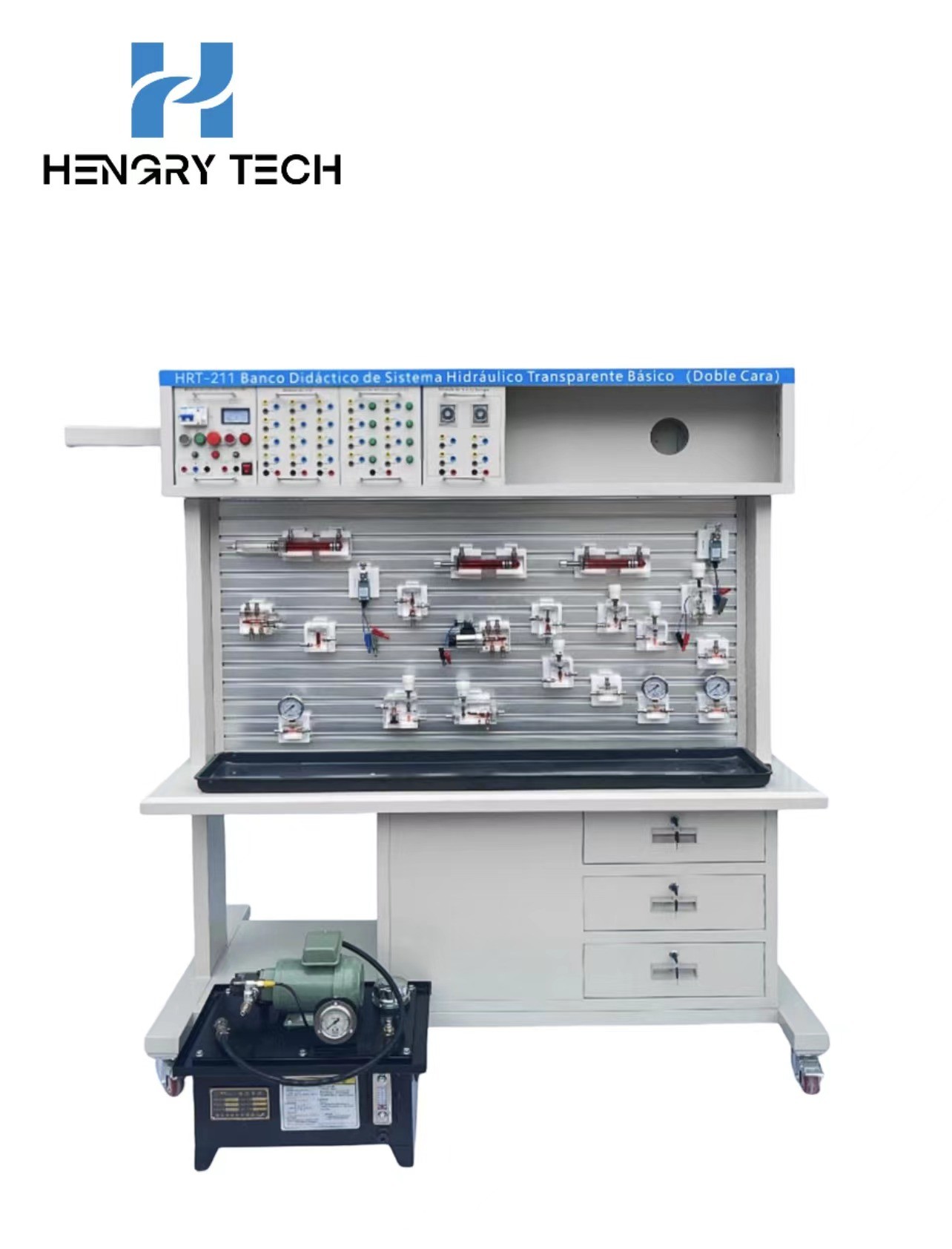

HR-TY01 Electro- transparent hydraulic trainer Double face

Transparent hydraulic system comprehensive practical training equipment overview

This training equipment is based on vocational schools, technical schools, universities, colleges and universities, colleges and universities of general teaching materials and the latest teaching just "hydraulic and pneumatic technology", "hydraulic principle", "hydraulic transmission", "mechanical foundation", "hydraulic control technology" and professional design in line with the teaching experiments, training special; At present, for hydraulic teaching, basically the use of industrial hydraulic test beds, due to the industrial hydraulic valve parts of the The outer shell of industrial hydraulic valves made of non-ferrous metals, light several pounds, heavy dozens of pounds, build the experimental circuit, it is very inconvenient, and the complex internal structure and dynamic principles are not visible, only by imagining students are not interested in this course of study, it is difficult to understand, the progress is slow. The best way to teach is: the shortest time, the fastest speed, so that students are interested in learning the palm of knowledge; the ultimate goal is to be able to use the knowledge learned in social practice. For this reason, we have developed HR-TY01 Electro-transparent hydraulic trainer (Double face). In order to let students, with the shortest time, the fastest speed, interested in learning, mastering, use of hydraulic systems, and combined with the characteristics of industrial hydraulic components. The training equipment all hydraulic components of the outer shell using imported high-definition transparent visualization material production, the internal are in accordance with the actual internal structure of industrial hydraulic components and design. Can truly reflect the static construction principle of a single industrial hydraulic component; can also choose to use more than one transparent hydraulic components to form any circuit; clearly observe the flow of fluids in the valve body and industrial hydraulic components spool in the circuit of the dynamic principle, the principle of simplicity, the circuit is clear, the abstract into an image of the complexity into simplicity, enabling students to get a thorough study of the knowledge of the hydraulic powertrain system and the use of it. This practical training equipment covers hydraulic technology, traditional relay control technology, time relay technology, sensor application technology and many other technologies in one, is the perfect combination of hydraulic technology and control technology. Therefore, the practical training equipment is hydraulic practical training teaching, hydraulic control skills training, hydraulic and sensor technology practical training, is a hydraulic-based and a number of technologies in one of the comprehensive training equipment, especially suitable for vocational colleges, technical schools, universities, colleges and institutes of higher education, professional hydraulic teaching experiments, practical training dedicated.

Practical training content:

1. Directional circuits with directional valves

2.Blocking circuit of directional valve with "O" type function

3. Pilot operated check valve blocking circuit

4. Pressure regulating circuit

5.Secondary pressure circuit

6.Hydraulic circuit with pressure reducing valve

7. Pressurization circuit with booster cylinder

8.Unloading circuit with directional valve

9. Throttling and speed control circuit

10.Return throttle circuit

11.Flow valve shorting speed changeover circuit

12.Secondary feed circuit

13.Sequence action circuit with sequence valve

14.Sequence action circuit of pressure relay

15.Sequential action circuit of electric travel switch

16.Sequential Action Circuit with Stroke Valve

17.Sequential Action Circuit for Travel Switches

18.Sequential Action Circuit for Pressure Relay
