Technical parameters: Input power supply: single-phase three-wire AC220V±10% 50Hz; Working environment: temperature -10℃~-40℃ relative humidity ≤85% (25℃) altitude <4000M; Equipment capacity: ≤1.5KVA; Compressor for air-conditioning system: input power 585W; Refrigerator system compressor: input power 65W; Refrigerant: R22 for air-conditioning part, R600a for refrigerator part; Overall dimensions (approx.): 1500mm x 800mm x 1450mm; Safety protection: with over-voltage, over-current, o

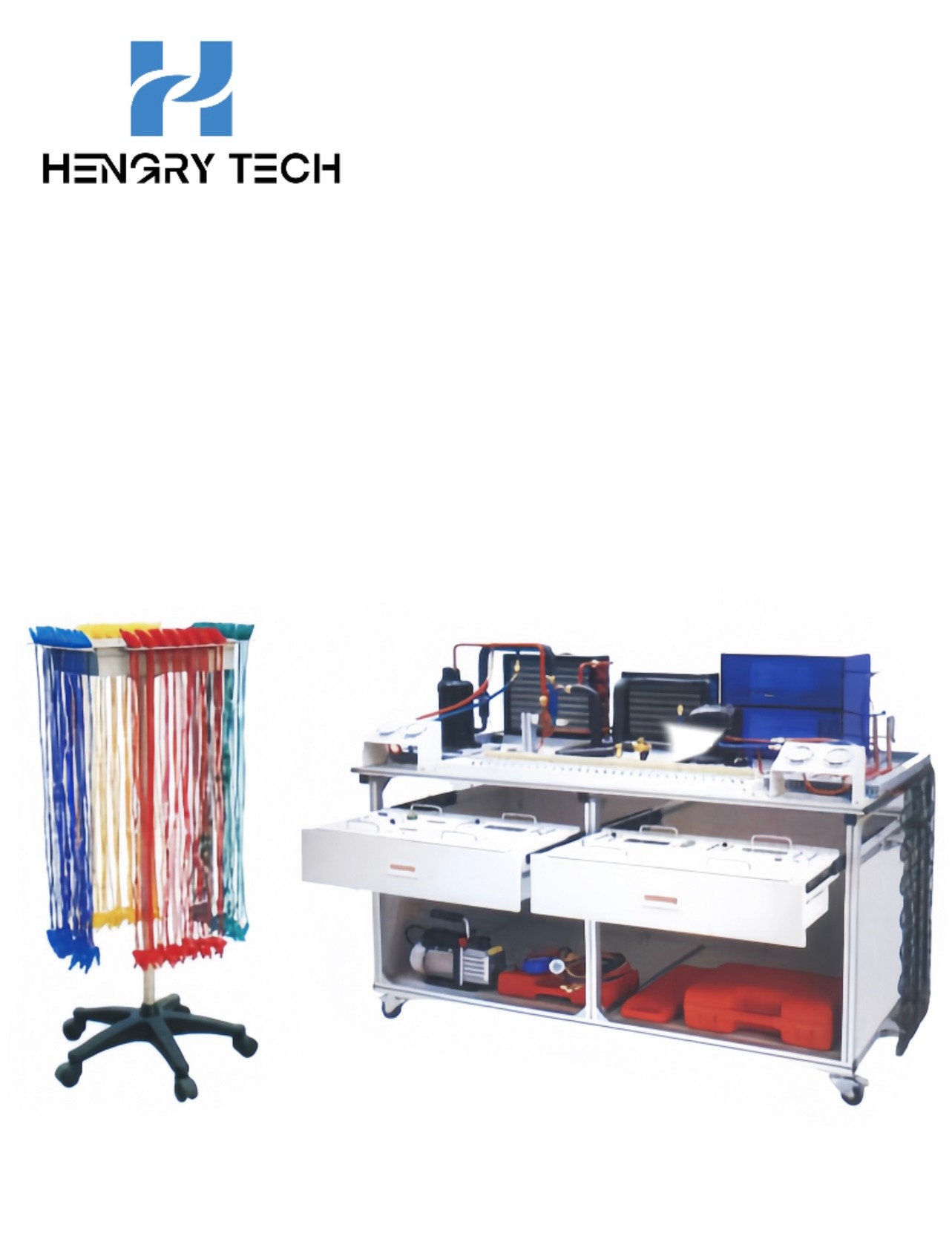

Device Overview:
This device is mainly composed of three parts: refrigeration system, electrical control module and intelligent assessment system. The refrigeration system is divided into split heat pump air conditioner and direct cooling refrigerator, covering the installation, piping design welding technology, wiring, pressure preservation, leakage detection, vacuum, refrigerant charging, refrigerant recovery and other contents involved in the refrigeration profession. Electrical control module in the split air conditioner has cooling, heating, dehumidification, automatic mode of operation, direct cooling refrigerator has standard, energy-saving, quick-freezing mode of operation, supporting intelligent assessment system can better grasp the basic principles of the control circuit and maintenance technology.
The device is suitable for teaching and practical training of refrigeration courses such as "Refrigeration and Air Conditioning Equipment", "Installation, Operation and Maintenance of Refrigeration and Air Conditioning Equipment", "Refrigeration and Air Conditioning Automation", "Air Conditioning Technology and Application", and also suitable for skill appraisal and assessment of refrigeration and related professions such as intermediate workers and senior workers.
Practical training programs:
1. Practical training in the operation of special tools for refrigeration workers;
2. Practical training in gas welding torch operation and welding;
3. Practical training in the assembly of air-conditioning refrigeration system piping;
4. air-conditioning refrigeration system pressure, leak detection and charging refrigerant training;
5. air conditioning control circuit electrical connection and debugging training;
6. air conditioning control circuit electrical fault assessment training;
7. Refrigerator refrigeration system piping assembly training;
8 refrigerator refrigeration system pressure, leakage detection and refrigerant charging training;
9. Practical training on electrical connection and debugging of control circuit of Toshiba GR-204E direct cooling electronic refrigerator;
10. Toshiba GR-204E direct cooling electronic control circuit electrical fault assessment training;
11.BCD-173GH intelligent temperature control refrigerator control circuit electrical connection and debugging practical training;
12. BCD-173GH intelligent temperature-controlled refrigerator control circuit electrical fault assessment training;
13. Refrigerator refrigeration system fault judgment and maintenance training;
14. Electrical literacy and system design training
