Technical Parameters 1. Input power: two-phase three-wire 220V ± 10% 50Hz 2. Working environment: temperature -10 °C ~ +55 °C Relative humidity ≤ 95% (no condensation) altitude <2000m 3. Device capacity: ≤2.5kVA 4. Overall structure size: width 800mm × depth 500mm × height 200mm 5.Security protection: with leakage protection, safety in line with national standards
Equipment overview

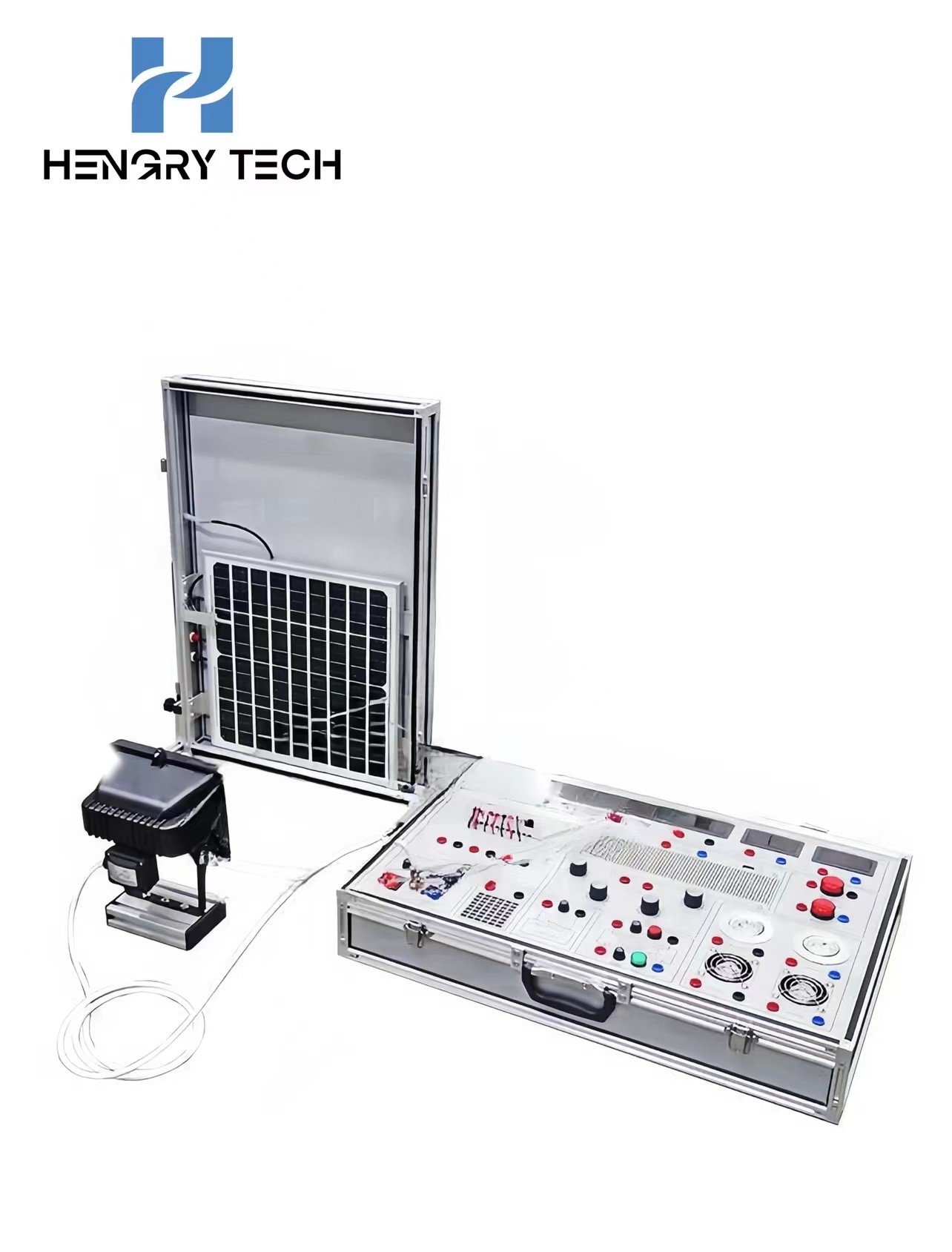

• The unit is a portable training system for studying the principles of solar energy, storage and conversion.Different electrical parameters can be measured due to various digital meters.
• The solar panel and storage battery is connected to a digital charge controller, which is designed with data acquisition and software monitoring function that allows the output from solar panel and battery state to be investigated, as well as controlling the output load.
• Adjustable distance between simulated light source and polycrystal solar cell panel, allowing investigation of system performance inside the laboratory irrespective of outside conditions..
Training program
• Solar cell open circuit voltage test
• Solar cell open circuit current test
• Solar cell maximum power output test
• Solar cell I-V character test
• Solar cell P-V character test
• Influence of environment to solar cell photovoltaic conversion
• Direct resistive load current and voltage test
• Direct inductive load current and voltage test
• Solar cell module output characteristics test
• Solar cell direct charging experiment
• Solar street lamp experiment
• Solar street lamp charging test
• Solar street lamp charging/discharging test
• Solar fan experiment
• Solar fan charging test
• Solar fan charging/discharging test experiment
