Technical Parameters 1. AC power: 380VAC ± 10% 50 Hz ; 2. Temperature : -10 ～ 40 ℃ ; environmental humidity: ≤90% (25 ℃) ; 3. Equipment size : wind power supply device 1578 * 1950 * 1540mm 4.Training platform 850 * 800 * 1840mm 5. Overall power consumption: ≤1.5 kW; 6. Recommended venue area : 8 square meters 7. Safety protection measures : battery over-charge, over-discharge protection,battery open-circuit protection, load over-voltage protection, and output short-circuit protection, and
Equipment overview

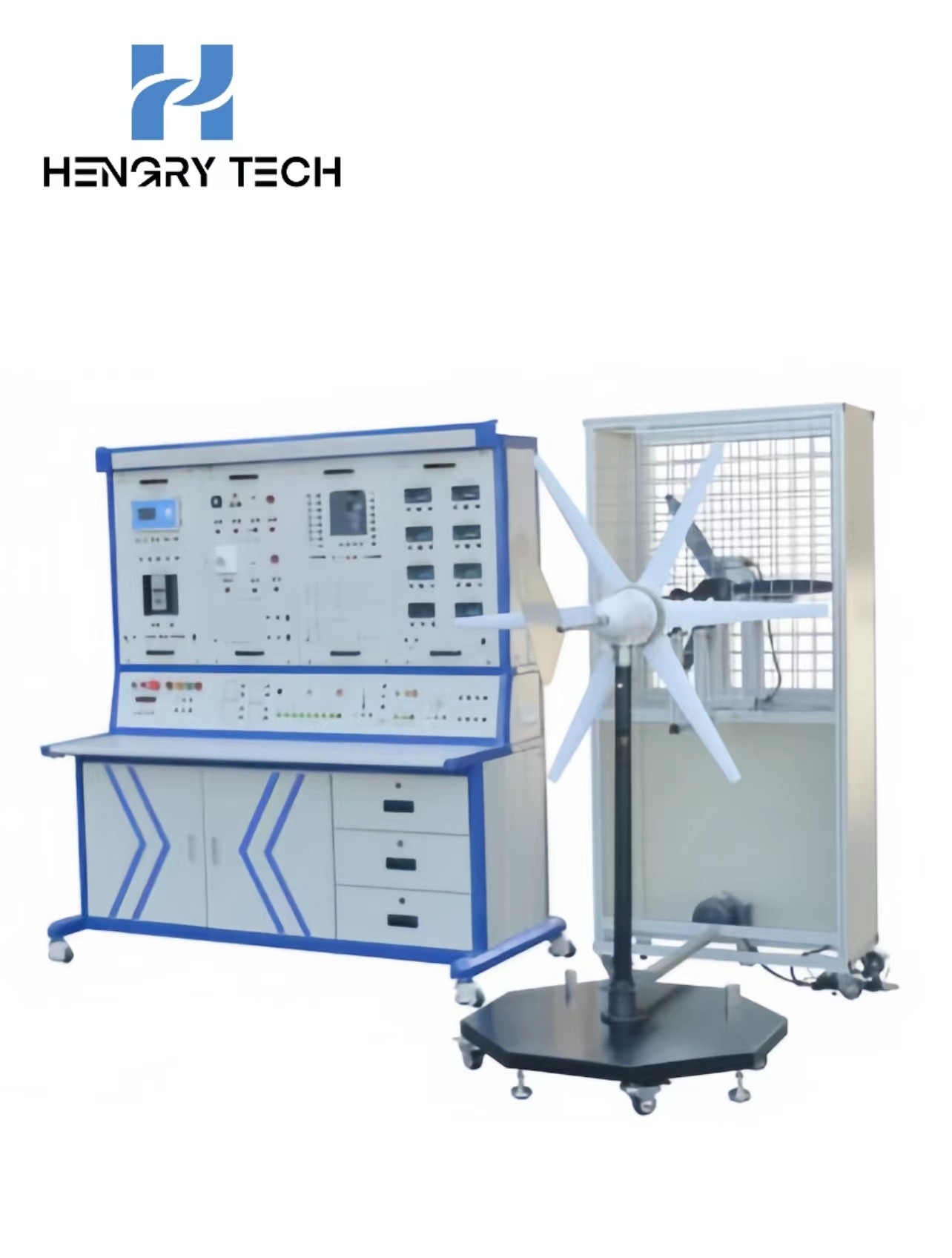

* The unit demonstrates the practical application of such a combined system for student to conduct the investigation of wind power generation. It is supplied as standard with a high-powered axial fan to generate realistic wind-speeds and allows investigation of system performance inside the laboratory irrespective of outside conditions.
* The wind module comes with direction emulator, that is, the angle of wind source can be adjusted automatically by PLC or manually by HMI & pushbuttons, simulating the different wind directions. The wind speed can be controlled by VFD with push button for adjustment, anemometer for data collection and HMI for display.
* A hybrid controller is adopted in this system, available for both solar and wind power generation, user can easily extend the trainer into a hybrid power generation system by adding solar simulator directly.
* Dedicated instrumentation includes, watt hour meter, AC/DC voltmeter and ampere meters for investigation of system efficiency and characteristics.
Training program
1.Wind tunnel wind speed adjustment training
2.Training on the impact of wind direction on wind turbines
3.Training for wind turbines to independently adjust the wind direction
4.Training of wind turbine yaw system
5.Inverter adjustment training
6.wind speed detection training
7.wind direction detection training
8.Training on the relationship between actual wind speed and generator speed
9.Training of wind turbine over speed
10.Training on the relationship between generator speed and output voltage
11.Training on the relationship between generator speed and output current
12.Training on DC load characteristics of energy storage device
13.Cognition of working principle of off-grid inverter
14.Training on AC load characteristics of off-grid inverters
15.DC load training
16.AC load training
