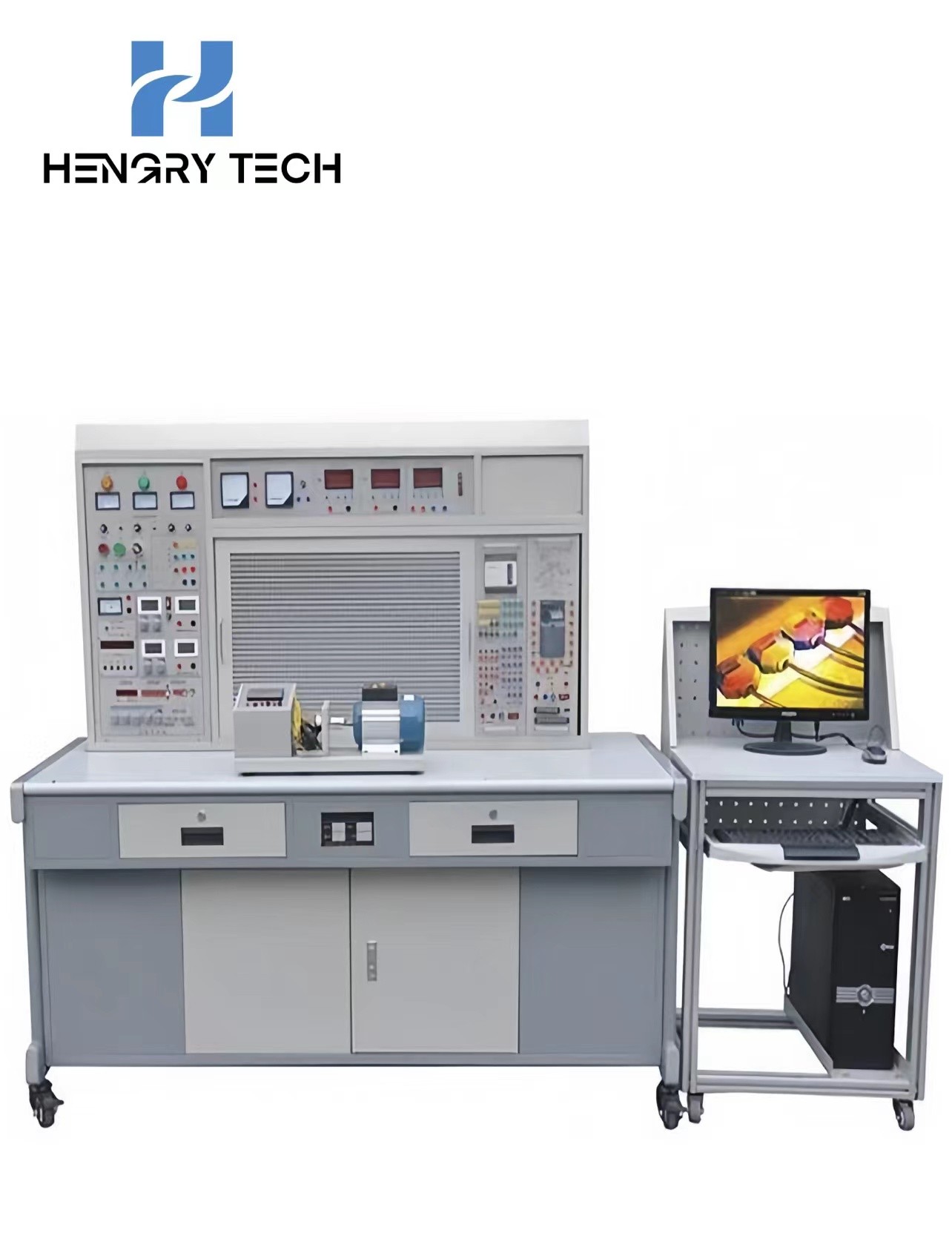

HRE-203 Electric Power Drag,PLC,inverter integrated trainer

Device features:

1, the use of mesh plate structure, the practical training method is flexible, close to the industrial site, can increase the components to increase the content of the practical training, to facilitate secondary development and functional expansion.

2、The practical training device is composed of motor, guide rail, encoder, measuring instrument, PLC host, frequency converter and other units, the practical training content is rich.

3、Safety protection measures are reasonable and scientific, and the appearance is luxurious and imposing.

4, based on PLC and frequency converter electrical control practical training project, equipped with MCGS configuration software and computer communication to monitor the practical training operation status.

Practical training projects:

(1) Basic motor training

1. DC parallel (other) excitation motor awareness experiments

2. DC parallel (he) excitation motor no-load test

3. DC parallel (he) excitation motor operating characteristics

4. Three-phase squirrel-cage asynchronous motor awareness experiments

5. Three-phase squirrel-cage asynchronous motor no-load experiment

6. Operating characteristics of three-phase squirrel-cage asynchronous motor

7. Awareness experiment of three-phase synchronous motor

8. No-load experiment of three-phase synchronous motor

9. Three-phase two-speed motor awareness experiments

(2) motor control part

DC parallel (other) excitation motor control

1. armature circuit series resistance start and speed control

2. Motor forward and reverse and braking experiments

3. Reduced voltage start and reduce the supply voltage speed control

Three-phase asynchronous motor control

1. Three-phase asynchronous motor gate switch forward control circuit

2. Three-phase asynchronous motor contactor pointing forward control line

3. Three-phase asynchronous motor with self-locking forward control line

4. Three-phase asynchronous motor forward control line with over-finding protection

5. Three-phase asynchronous motor inverted switch control forward and reverse control line

6. Three-phase asynchronous motor contactor interlocking forward and reverse control line

7. Three-phase asynchronous motor push-button interlock forward and reverse control line

8. Three-phase asynchronous motor button contactor composite interlock control line

9. Table automatic round-trip travel control line

10. Three-phase asynchronous motor contactor control series resistance reduced voltage starting line

11. Three-phase asynchronous motor time relay control series resistance voltage reduction control line

12. Three-phase asynchronous motor manual Y / △ voltage reduction starting

13. Three-phase asynchronous motor contactor control Y/△ reduced voltage starting

14. Three-phase asynchronous motor time relay control Y/△ reduced voltage starting

15. Three-phase asynchronous motor QX3-13 type Y/△ automatic starting control line

16. Multi-location control of three-phase asynchronous motor

17. Three-phase asynchronous motor half-wave rectifier energy braking control line

18. Three-phase asynchronous motor full-wave rectifier energy braking control line

19. Electrical control circuit of C620 lathe

20. Three-phase asynchronous motor manual reduced voltage starting

21. Three-phase asynchronous motor single-phase operation reverse braking control line

22. Electric hoist electric control circuit

23．C6163 lathe electrical control circuit

24. Three-phase asynchronous motor control circuit interlock control line

25．Three-phase asynchronous motor main circuit interlock control circuit

Three-phase synchronous motor control

1. Synchronous motor forward control circuit

2. Energy brake control circuit for synchronous motor

Three-phase double-speed motor control

1. Manual speed change control circuit for two-speed motor

2. Contactor control of two-speed motor control circuit

3. Time relay control of two-speed motor control circuit

(3) PLC-based motor control practical training

1. PLC-controlled three-phase asynchronous motor forward and reverse control

2. PLC control of three-phase asynchronous motor Y / △ start control

3. PLC control of three-phase asynchronous motor buck start control

4. PLC control of three-phase asynchronous motor energy braking control

5. C620 lathe electrical control line

6. C6263 lathe electrical control circuit

7. Electric hoist electrical control line

(4) based on the frequency converter motor drag and control training

1. Inverter function parameter setting and operation

2. Frequency converter alarm and protection function

3. Multi-segment speed selection frequency conversion speed control

4. External terminal point control

5. Control motor forward and reverse motion control

6. Control motor running time operation

7. Instantaneous power failure inverter parameter setting

8. External voltage frequency conversion speed control

9. Three-phase asynchronous motor frequency conversion open-loop speed control

(5) PLC, inverter motor drag and control training

1. PLC communication based on the multi-segment speed selection frequency control

2. PLC communication based on the frequency converter open-loop speed regulation

3. Based on PLC communication mode of inverter closed-loop speed regulation
