HR-QC13 Automatic Transmission Disassembly and Assembly Roll-Over Stand

Equipment Overview

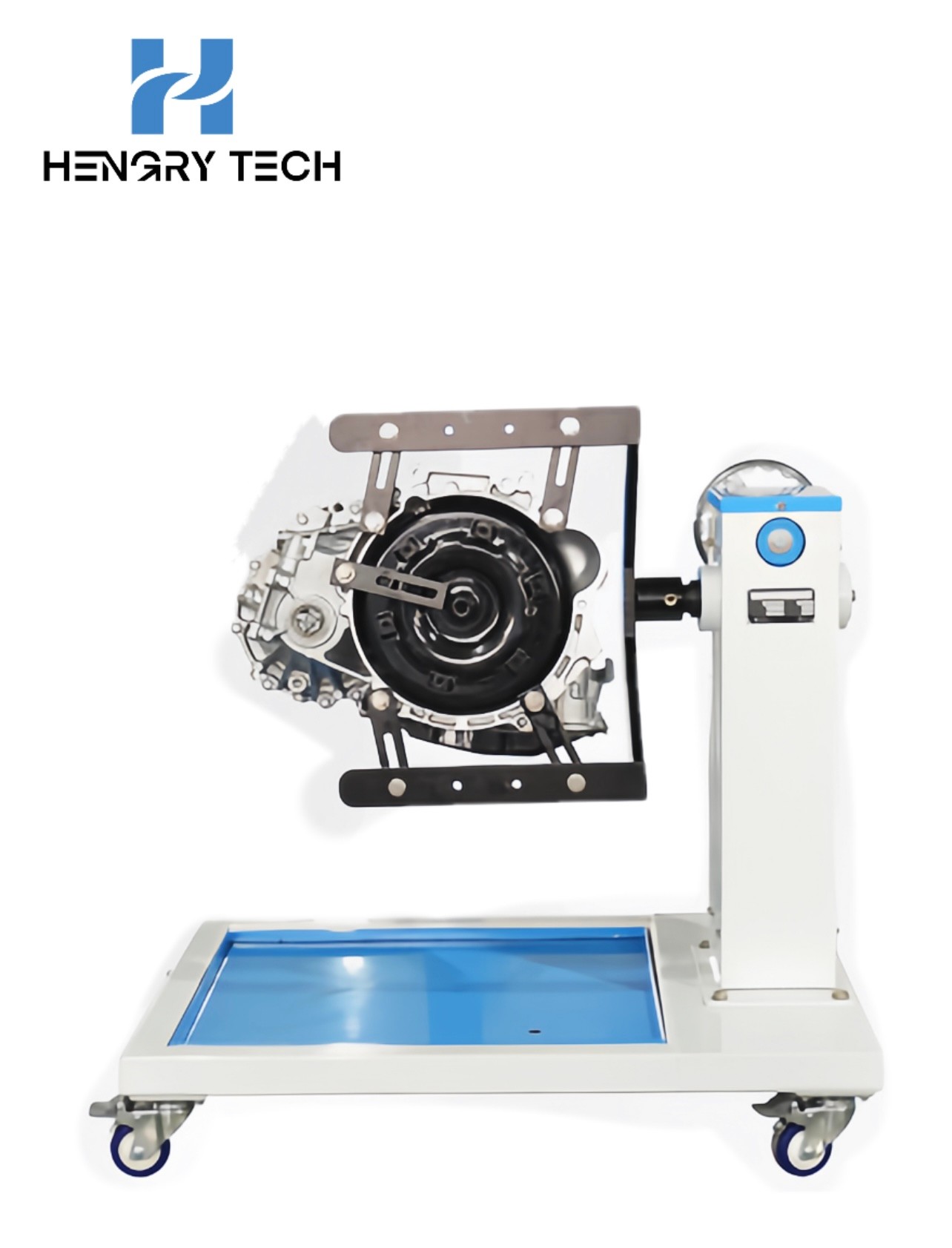

Volkswagen 01N automatic transmission assembly, transmission parameters, are in line with teaching requirements. The parts are complete, including the input shaft, gear mechanism, differential reduction, shift control mechanism. Plus teaching aids, universal disassembly and assembly flip frame, mechanical stamping type oil pan, supporting the use of manuals and so on. It allows students to master the structure and control principle of the transmission faster, accelerates the students' understanding of the transmission, and belongs to the ideal auxiliary understanding equipment for teaching in automobile schools.

Functional characteristics

1, the transmission structure is good, the parts are complete without damage, the parameters are in line with the manufacturing, normal operation needs. All parts are complete, can meet the needs of engine disassembling, assembling, debugging, inspection of the whole process.

2, with the company's self-developed universal flip frame, can be assembled on the flip frame of different types of transmissions, assembly is simple and convenient, suitable for vocational colleges and training institutions for students to carry out transmission theory and practical skills of practical training and assessment needs.

3, with turbine worm gear flip structure, the use of advanced design concepts, can realize 360 degrees free rotation, and automatically lock at a certain position, so that the disassembly and assembly process more smooth, smooth.

4, the bottom of the frame with mechanical stamping type oil catching tray, to do parts, tools, oil, three do not fall to the ground. Ensure the cleanliness of the field of operation.

5, the bottom of the table frame adopts high-quality steel pipe, made of special welding support frame, the upper part of the turbine worm gear flip mechanism, made of special welding, the table frame is beautiful and durable.

6, the flip frame is movable, with nylon rubber universal mobile casters, casters with locks for convenience and practicality.

7, the surface of the frame is sprayed with metal paint by high-temperature baking, bright color and long life.

Training program

Transmission disassembly training program.

Transmission overhaul process training program.

Transmission structure and principle understanding training program.

Recognition and use of turbine worm gear flip structure.

Sensor and actuator awareness and disassembly practical training.
