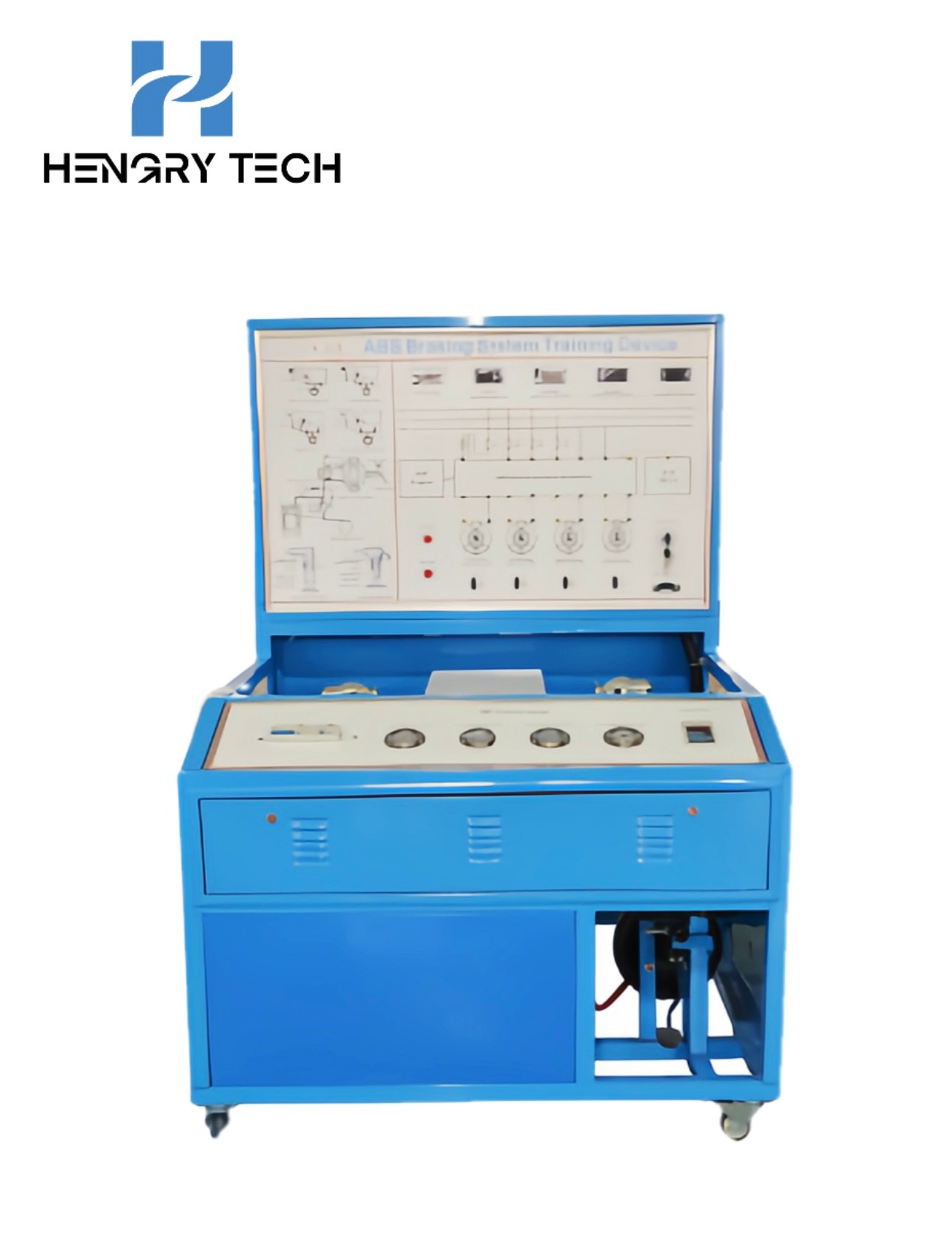

HR-QC07 ABS braking system training device

Equipment Overview

This product is suitable for colleges and universities, vocational schools, automobile repair professional teaching use, through the demonstration of this product or practical training practical practice, can let the students faster to master the ABS system structure and control principles, accelerate the students to the ABS system awareness, belong to the automobile school teaching ideal auxiliary understanding equipment.

Functional characteristics

1, the device uses the original ABS/ESR/ESP pump assembly (with electronic control ECU), brake system components, wheel speed sensors, OBD diagnostic seat, ignition switches and other original ABS running accessories. Extra teaching aids panel circuit schematic, extra line detection terminals, speed inverter, 5.5KW three-phase asynchronous motor, vacuum simulation pump, brake pipe pressure gauge, LCD digital table, leakage switches, fault simulator, removable pedestal, supporting instruction manuals and so on.

2, real automobile ABS/ESR/ESP braking system in kind, can show the image of the ABS braking system structure and working principle. Suitable for all middle and high school vocational and technical colleges for students to teach the principle of automotive ABS braking practical training and practical needs.

3, equipment equipped with vacuum booster, can reduce the operator's fatigue point, real according to the original braking system function production, not detached from the original car, but also to achieve higher teaching purposes, at the same time can be simulated with a vacuum booster and no vacuum booster braking conditions of the difference.

4, corresponding to the model panel schematic diagram, installed with external detection terminals, sensors, actuators and electronic control units can be carried out on the voltage, resistance, current and other testing and maintenance training.

5, installed OBDII diagnostic seat, can be connected to a special decoder on the brake electronic control system for fault code reading, fault code clearing, dynamic data stream reading, waveform analysis and other experiments.

6, the equipment is equipped with front and rear brake system motor drive shaft danger protection device, motor power leakage switch and other safety devices to ensure the safety of the use of equipment, more humane teaching.

7, the equipment can be set up for a variety of types of circuit failures, to complete the comprehensive skills assessment of students.

Practical training program

1, ABS/ESR/ESP electronic control system structure awareness

2, system fault code retrieval and removal

3, each actuator awareness and testing

4, the recognition and testing of each sensor

5,Data flow reading and analysis

6, ABS system work signal measurement

7,ABS operation process and phenomenon analysis

8,Brake system filling and emptying test
