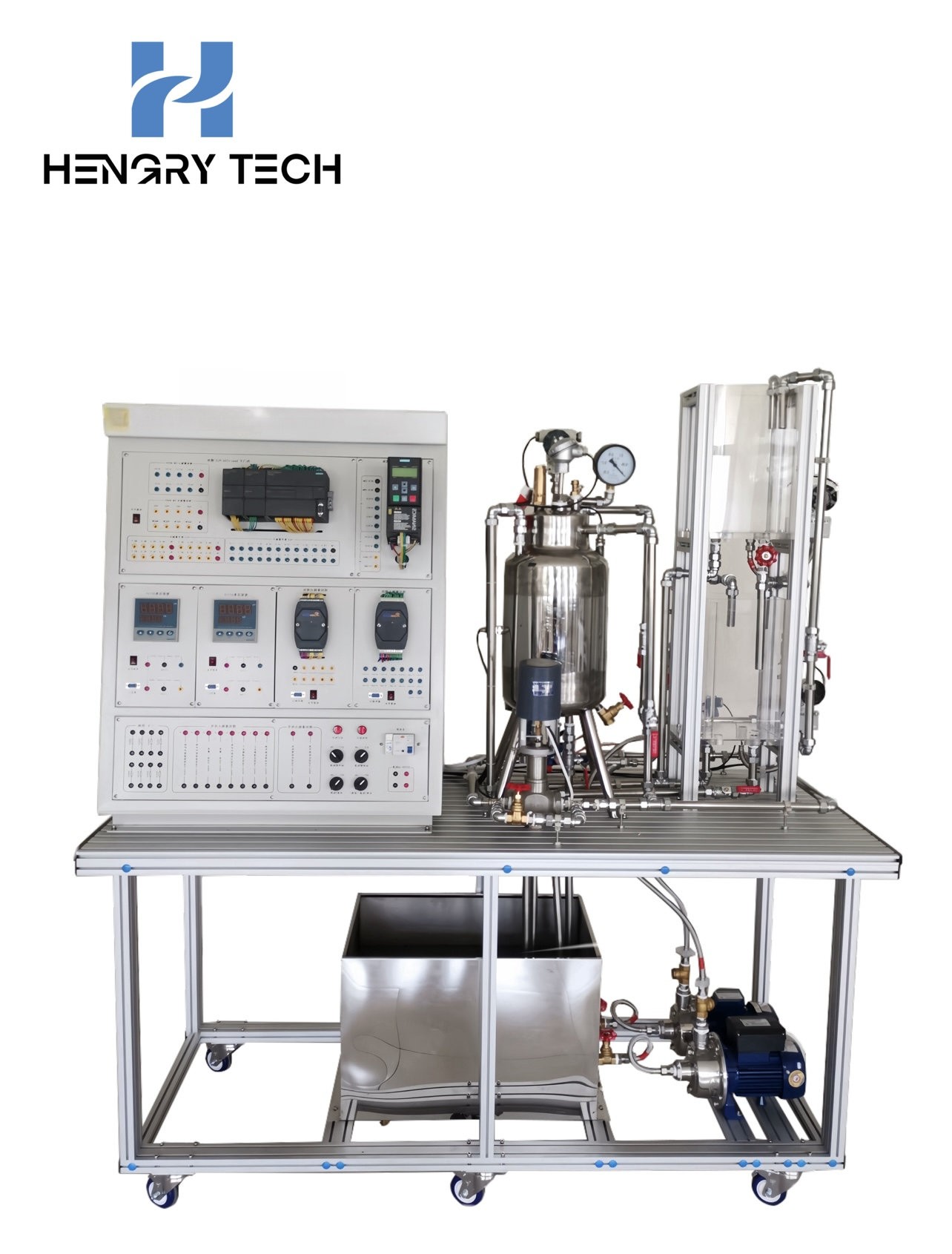

HRS-303 Process control trainer

Equipment Overview

This equipment is a comprehensive experimental system for process control and automation instrumentation developed to meet the needs of school teaching and engineering practice platform. The device embodies the concept of engineering, emphasising engineering, practice and openness, which can not only complete the opening of relevant course experiments, but also be a platform for students to carry out engineering training, graduation design and course design. At the same time, it can also carry out engineering training and technical practice. The device system covers the knowledge of the course: process control; automation instrumentation and detection and sensing devices; automation instrumentation network communication.

Functional characteristics

1. Process control process experimental object for the miniature a production process process object, the production process process object to have the following characteristics:

 industry's four commonly used thermal parameters: temperature, pressure, flow, level representative of the engineering detection and sensing transmission devices, commonly used engineering actuators (control valves, inverters, SCR phase shifter regulators) can be reflected on it.

* Process objects can be steadily realised from single-loop, series, feed-forward-feedback, ratio, composite control and other experiments.

* PID, hysteresis, coupling control algorithms and regulation algorithms can be verified on it.

*Experiments in the use and calibration of automation instruments.

*Composition of control system can be reflected on it.

Practical training projects

1.Process control system basic experiments

(1) Control system composition awareness training

* Object hardware device structure awareness and instrumentation operation, sensor calibration (zero migration and range adjustment) training;

*Experimental software and its development platform familiarisation practical training;

*Training on the selection of control loops and loop connection lines;

*Training on the relationship between the operating characteristics of frequency conversion pumps and the flow rate;

*Training on the characteristics of control valves;

*Training on heat exchanger heat transfer characteristics;

(2) Determination of the object mathematical model training

* single-capacity water tank level mathematical model of the determination of practical training;

* double-capacity tank level mathematical model of the determination of practical training;

(3) Practical training of bit-type temperature control

* boiler liner water temperature control training;

(4) Single-loop regulation training

*The upper water tank level fixed value (follow-on) control training;

*Serial double-capacity medium water tank level fixed value control training;

* Boiler jacket water temperature fixed value control practical training (dynamic flow of water);

*Boiler jacket water temperature control training (dynamic flow of water);

* flow meter flow rate control training;

(5) series control training

* water tank level and flow series control training;

* upper and middle water tank level serial control training;

* boiler water temperature serial control training;

(6) ratio control system training

* flowmeter flow variable ratio single-loop control training;

* flowmeter flow rate variable ratio of double-loop control training;

(7) frequency conversion constant pressure water supply training

*Frequency conversion constant pressure water supply training (single frequency converter control);

(8) industrial control software configuration control training

* real-time database configuration, M graphic animation, reports, curves, alarm configuration, equipment communication configuration, script application configuration training.
