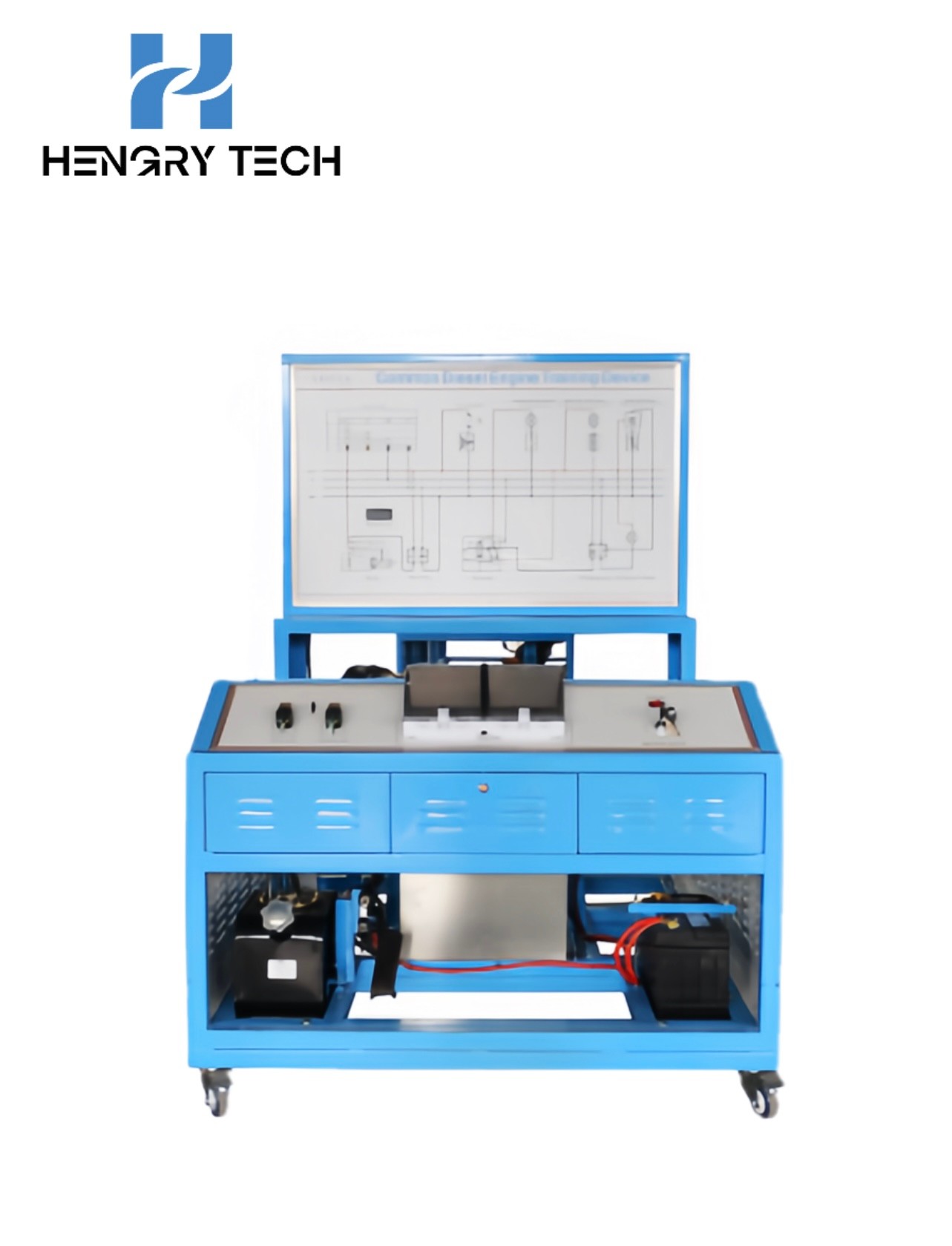

HR-QC02 Common Diesel Engine Training Device

Equipment Overview

This practical training platform is based on electronically controlled common rail diesel engine, which consists of three parts: the main frame, the console and the test bench. It is suitable for the teaching of automobile engine construction and maintenance in middle and higher vocational colleges and training institutions, and can meet the teaching needs of the structure, working principle, fault setting and diagnosis of electronically controlled gasoline engine. This experimental equipment is easy to operate, safe and reliable, easy to maintain.

Structure

Electronically controlled common rail diesel engine assembly, the original engine control computer, combined instrumentation, anti-theft computer, engine start and run all the relevant original accessories, fault setting and elimination system, the original circuit schematic board and test terminals, 60AH high-capacity batteries, high-capacity stainless steel fuel tank, engine acceleration mechanism, control panel cabinet, removable rack, rack power switch, OBD diagnostic seat, cooling System, task-driven teaching mode of practical training guidebook and the rack operating instructions.

Sensors and actuators installed digital display table, the platform to install fuel pressure gauge and vacuum gauge, with locking universal casters, stainless steel hand guards, the platform high temperature and rotation and other parts of the installation of protective devices.

Functional features

1、Display function

2、Dynamic operation function

3、Real-time display function

4、Detection function

5、Signal simulation function

6、Self-diagnosis function

7、Anti-theft system setting function

8、Fault setting and assessment function

9、Partitioned according to the teaching content, each functional area is clear.

Practical training program

1、Engine work running demonstration, teaching, experiment;

2、each sensor signal detection, simulation experiment;

3、Electronic control system fault setting, troubleshooting, experiments, practical training, assessment;

4、the engine EFI system and decoder communication, setup, read fault code signal waveform acquisition and other experiments, practical training;

5、EFI engine assembly disassembly, testing practical training.
