HR-PF06 CIP Automatic Cleaning System

Equipment Overview

Cip automatic cleaning system is widely used in modern large-scale fluid pharmaceutical factories, dairy factories, breweries, pharmaceutical factories, canning factories, condiment factories and general food factories processing process of sanitation requirements and production environment requirements of the pipeline, tanks containers and equipment in situ cleaning.

CIP automatic cleaning system working principle

Cip automatic cleaning system working principle through the RTD measured temperature to control the opening and closing of the steam valve; through the pressure transmitter to measure the level of liquid to control the opening and closing of the water valve; through the conductivity meter to measure the size of the conductivity to control the alkali, acid diaphragm valve opening and closing. The overall control process is water heating ---- lye cleaning ----- hot water rinsing ----- acid cleaning ----- hot water cleaning.

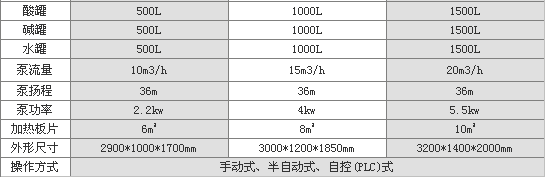

CIP automatic cleaning system Technical parameters

CIP automatic cleaning system structure composition

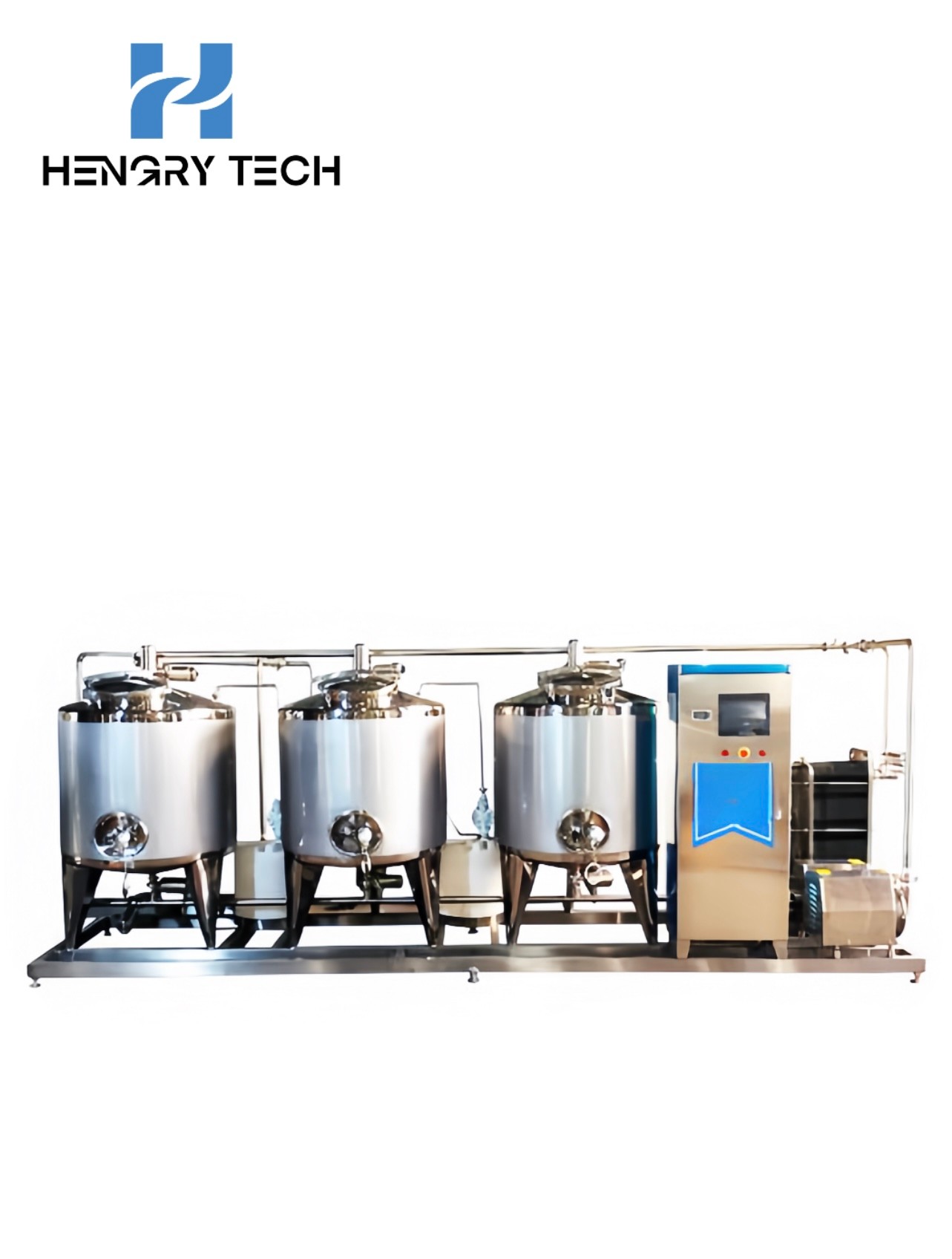

Automatic CIP cleaning system consists of acid tank, alkali tank, hot water tank, pure water tank, concentrated acid, concentrated alkali tank, heat exchanger, various pipelines and pneumatic valves, pressure transmitter, conductivity meter, platinum RTD and control system.

CIP automatic cleaning system features

(1) The automatic CIP cleaning system uses human-machine interface (touch screen) and utilizes image display to make it easier for the operating author to control and monitor.

(2) automatic CIP cleaning system, can be automatically detected on the cleaning fluid, adding liquid, discharge, display and adjustment, its reliable operation, high degree of automation, simple operation, good cleaning effect, and thus more in line with the modern large-scale fluid pharmaceuticals. Food processing hygiene requirements and production environment requirements.

3）Automatically adjust the temperature of fresh water, acid, alkali cleaning liquid, hot water and other degrees.

4）Automatic or manual control can be freely selected by switching the screen.

5）According to the customer's special requirements, on-site preparation and modification of the program for special control.

6）Automatic CIP cleaning system can be centralized control according to customer's needs.

7）Flexible man-machine dialogue interface enables the operator to choose each operation program conveniently. The touch screen will faithfully display the options and the actual production of each stage of temperature. Time conductivity and other conditions, to facilitate real-time monitoring.
