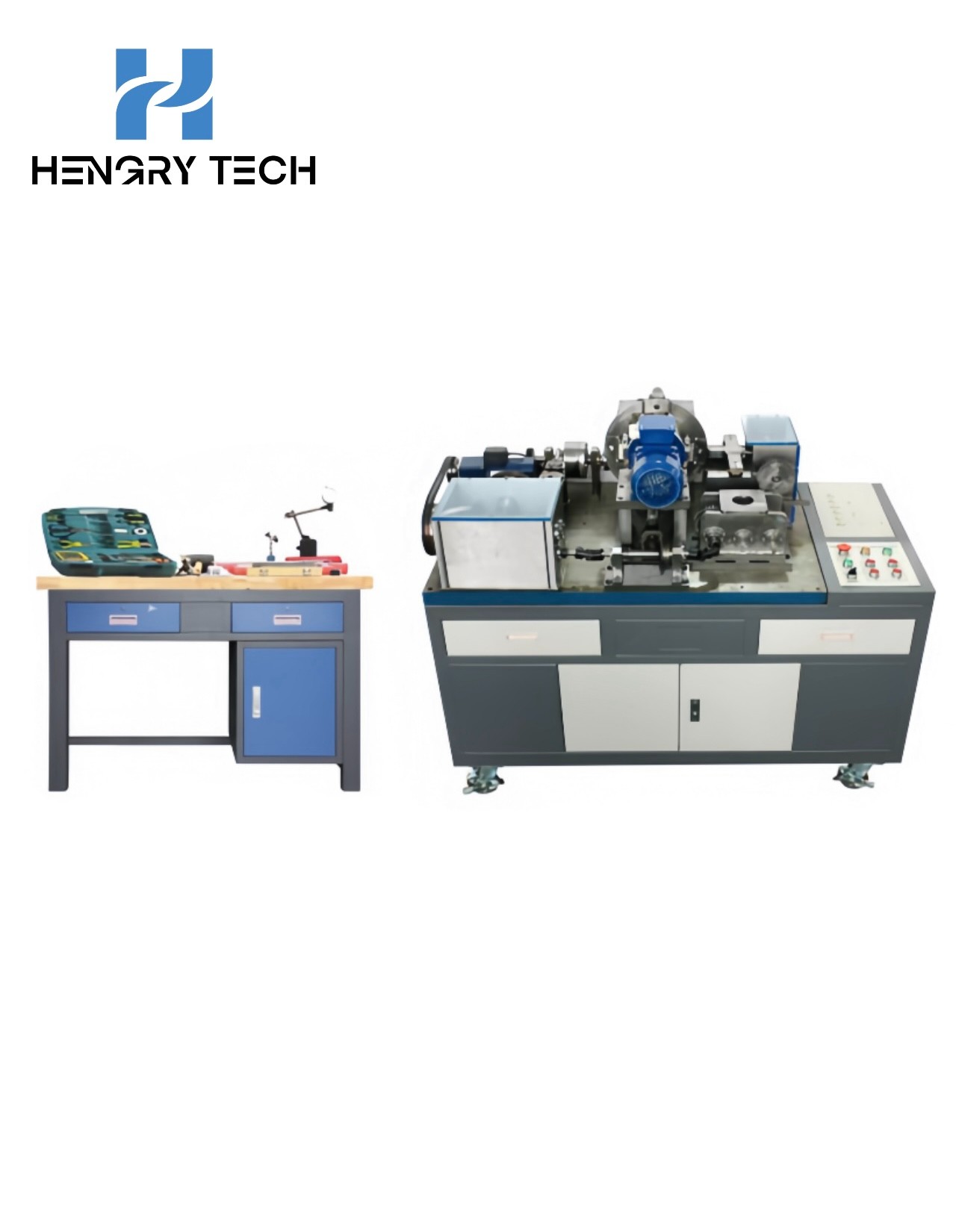

HRA-1002 Mechanical assembly and mechanical automation technology comprehensive practical training equipment

1.Product Overview:

Mechanical assembly skills comprehensive practical training platform based on mechanical, electromechanical vocational school related professional teaching standards, closely combined with industry and enterprise demand and design, the platform operating skills docking occupational standards, in line with the requirements of the actual job capacity of enterprises, such as the "Mechanical Equipment Installer National Occupational Standards", "Mechanical Clamping," "Combined Machine Tool Operator National Occupational Standards"; the platform can be a typical task of the industrial site as a Practical projects to achieve project-based teaching with operability and practicability. By completing the skills of mechanical equipment drawing and assembly process, assembly and adjustment of parts, assembly and adjustment of combined machine tools, typical machine tools and machine parts, assembly quality inspection and debugging, operation and trial machining of equipment, it improves the comprehensive vocational ability of students, and plays a demonstration and leading role in the construction of mechanical assembly training room for processing and manufacturing majors.

2.System composition and function:

This device can achieve purely mechanical automatic machining function, there is a variable speed power box to provide two-way transmission power to the equipment, one way power through the opening and closing of the electromagnetic clutch to control the precision indexing head of the four indexing, in the precision indexing head of the workbench installation of four eccentric wheel clamping fixture, in the process of the indexing head indexing the workpiece is automatically fed, by the eccentric wheel clamping mode of clamping the workpiece clamping, the processing of the finished workpiece through the cam rotary handle The workpiece will be loosened by the eccentric wheel clamping fixture through the cam knob to drop the workpiece into the material tray; all the way through the elastic coupling to connect the bevel gear shaft, the bevel gear distributor is divided into two ways of transmission, all the way by the bevel gear, cylindrical cam drive the automatic drilling machine to achieve the function of feeding and retracting the tool; the cylindrical camshaft is mounted with an adjustable disc cam, limit switch device, which can control the working state of the electromagnetic clutch to make the index head work with the automatic drilling machine and automatic marking machine; the other way, the workpiece is automatically fed during the process of indexing of the indexing head. The other way is controlled by double universal coupling, rack and pinion linkage mechanism to control the cone roller clutch of automatic marking machine, and the automatic marking machine is driven by three-phase asynchronous motor to achieve the function of steel mark knocking.

3.Device features.

    It mainly consists of training table, variable speed power box, precision indexing head, workpiece clamping device, automatic drilling machine feeding mechanism, automatic marking machine, coupling, electromagnetic clutch, rack and pinion linkage mechanism, assembly and testing tools and other parts.

    Variable speed power box module: the power source provides power, after realising the speed change, so that the power has a two-way output function. It is mainly a box structure composed of four shafts, one input shaft, one transmission shaft and two output shafts, with two output shafts at an angle of 90°, which can complete the function of one input shaft and two speed-change output shafts. It can complete the assembly process of variable speed power box and precision testing training.

    Precision indexing head module: it is mainly composed of worm gear, box, tapered bearing, unloading device, working table, etc. It adopts the structure of industrial universal indexing head, and it can realise four indexing of working table through the cooperation of electromagnetic clutch. It can complete the assembly process of precision indexing head and precision testing training.

Workpiece clamping device module: it is composed of four eccentric wheel clamping fixtures, and the four clamping devices are installed on the table surface of the precision indexing head at 90° distribution, which can realise the clamping and positioning of the workpiece. It can complete the assembly process of workpiece clamping device and precision testing training.

    Automatic drilling machine feeding mechanism module: it can drive the automatic drilling machine to achieve the functions of feeding and retiring. It is mainly composed of power motor of automatic drilling machine, cylindrical cam mechanism, dovetail groove sliding plate, adjusting screw mechanism, bearing seat, linear guide vice, bevel gear mechanism and so on. It can complete the assembly process of cylindrical cam mechanism, dovetail groove sliding mechanism, linear guide vice, etc. and precision testing training.

    Module of automatic marking machine: it is mainly composed of crankshaft, axle tile, tapered roller clutch, guiding device, striking head, gripper, box, power motor, bearing, etc. It can mark the workpiece automatically, and the marking head can be replaced freely. It can complete the assembly process of automatic marking machine and precision testing practical training.

    Coupling module: it is mainly composed of flexible connection coupling, hard connection coupling, cross universal coupling and so on. It can complete the assembly process of coupling and precision testing training.

    Cam-controlled electromagnetic clutch module: mainly consists of electromagnetic clutch assembly, electromagnetic clutch coupling flange, disc cam, limit switch, drive shaft, bearing housing, bearings, helical gear drive and other components. It can complete the assembly process of cam-controlled electromagnetic clutch, precision adjustment, testing and disc cam and electromagnetic clutch action with practical training.

    Rack and pinion linkage module: it is composed of crank, linkage, gear, rack and pinion, bearing seat, bearing, shaft, etc. It can control the opening and closing of the tapered roller clutch of the automatic marking machine by adjusting the coordination of the rack and pinion linkage. Can complete the rack and pinion linkage mechanism assembly process and precision testing training.

Assembly and testing tools: Configure commonly used assembly tools and testing tools, through the application of measuring tools, mastering the operation specification of measuring tools.

4. Practical training projects

Project 1 Assembly and adjustment of coupling module

According to the assembly drawings and assembly process requirements, carry out the assembly and adjustment of flexible connection coupling, hard connection coupling, cross universal coupling and so on.

Item 2 Assembly and adjustment of rack and pinion linkage module

According to the assembly drawings and assembly process requirements, assembly and adjustment of poppet gear, rack and pinion, connecting rod and other mechanisms.

Project 3 Assembly and adjustment of cam-controlled electromagnetic clutch

According to the assembly drawings and assembly process requirements, complete the assembly and adjustment of cam, cam control system, electromagnetic clutch and so on.

Item 4 Assembly and adjustment of precision indexing head module

According to the assembly drawings and assembly process requirements, complete the assembly and adjustment of worm gear, box, worktable, etc.

Project 5 Assembly and adjustment of workpiece clamping device module

According to the assembly drawings and assembly process requirements, carry out the assembly and adjustment of eccentric wheel clamping device.

Project 6: Assembly and adjustment of variable speed power transmission module

According to the assembly drawings and assembly process requirements, carry out the assembly and adjustment of variable speed power box.

Project 7 Automatic drilling machine feeding mechanism module assembly and adjustment

According to the assembly drawings and assembly process requirements, carry out the assembly and adjustment of linear guide vice, cylindrical cam, dovetail groove mechanism, silk rod, etc., etc.

Project eight automatic marking machine module assembly and adjustment

According to assembly drawings and assembly process requirements, carry out the assembly and adjustment of crankshaft, axial tile, bearings, guiding device, striking head, etc., etc.

Project 9 Complete assembly and precision adjustment of mechanical components

According to the functional requirements of the mechanical equipment, complete the whole machine assembly of each component in accordance with the assembly requirements and assembly precision, and achieve precision testing.

Project 10 Commissioning, operation and trial processing of mechanical equipment

Debugging and running mechanical equipment to meet the specified working requirements and technical requirements, and carry out trial processing of mechanical equipment.
