Technical Parameters 1. Input power: two-phase three-wire 220V ± 10% 50Hz 2. Working environment: temperature -10 °C ~ +55 °C Relative humidity ≤ 95% (no condensation) altitude <2000m 3. Device capacity: ≤2.5kVA 4. Overall structure size: width 1200mm × depth 800mm × height 1600mm 5.Security protection: with leakage protection, safety in line with national standards

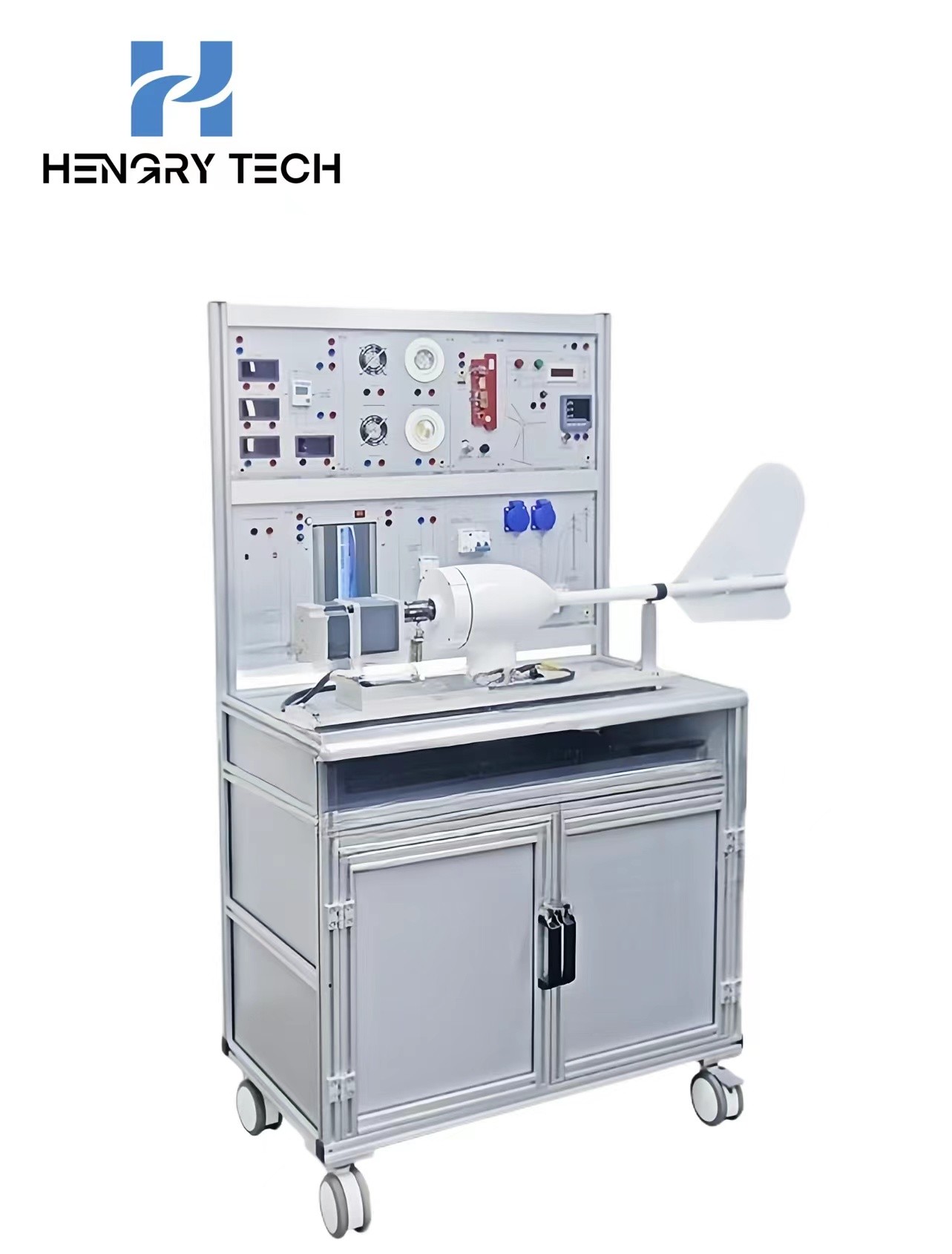

Equipment overview
• The unit demonstrates the practical application of such a combined system for student to conduct the investigation of wind power generation.
• Three phase AC permanent magnet generator is used for the wind power generation, which is driven by a DC gear motor to simulate the wind turbine working under different wind speed. By this way to achieve system performance inside the laboratory irrespective of outside conditions.
• Dedicated instrumentation includes, AC/DC voltmeter and ampere meters for investigation of system efficiency and characteristics.
• Both on grid and off grid type inverters are provided for the different energy applications of wind power generation system.
Training program
• Wind power generator simulated wind speed experiment
• Wind power generator output open circuit voltage experiment
• Wind power generator output circuit current experiment
• Storage battery DC discharging experiment
• Wind power generator to battery charging experiment
• Wind controller electrical energy conversion experiment
• Wind controller braking experiment
• Wind power generator V/I output characteristic curve experiment
• DC resistive and inductive load experiment
• AC resistive and inductive load experiment
• Integrated load experiment
• Controller integrated load and electricity consumption measurement
• Connect wind power generator to electrical grid
