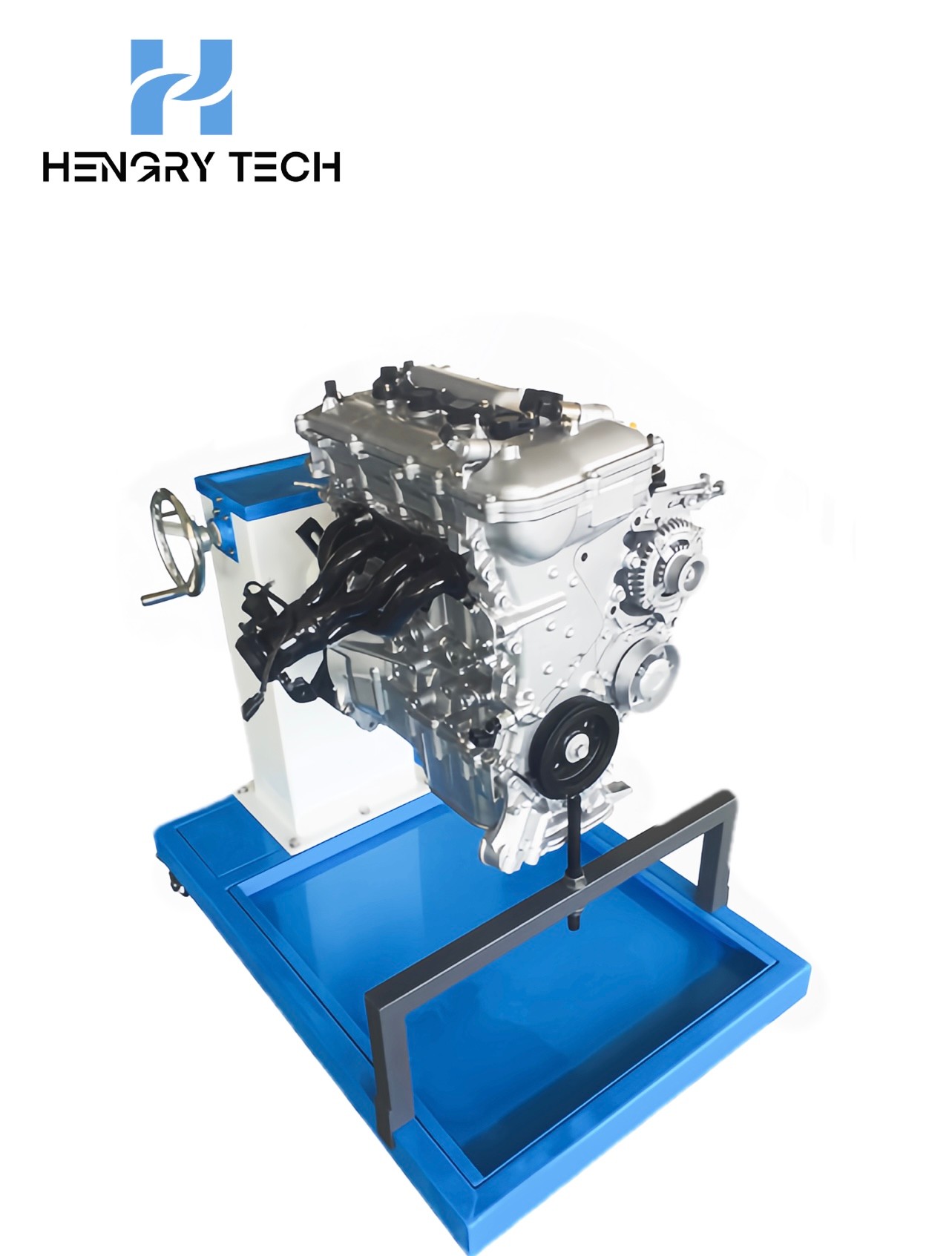

HR-QC12 Engine Disassembly and Assembly Roll-Over Stand

Equipment Overview

Engine assembly, engine parameters, are in line with the teaching requirements. The parts are complete, including engine assembly, charging system, ignition components, fuel injection components, intake components, exhaust components, sensors, actuators, and so on. Plus teaching aids, universal disassembly and assembly flip frame, mechanical stamping type oil pan, supporting the use of manuals and so on. Can be carried out on the students of the automobile engine structure, working principle of training, suitable for vocational and technical colleges and universities on the automobile engine teaching and practical skills training and assessment needs.

Functional characteristics

1, the engine structure is good, the parts are complete without damage, the parameters are in line with the manufacturing, normal operation needs. The parts are complete, can meet the engine disassembly, installation, debugging, inspection of the whole process needs.

2, with the company's self-developed universal flip frame, flip frame assembly of different types of engines, assembly is simple and convenient, suitable for secondary and higher vocational colleges and training institutions for students to carry out transmission theory and practical skills of practical training and assessment needs.

3, with turbine worm gear flip structure, the use of advanced design concepts, can realize 360 degrees free rotation, and automatically lock at a certain position, so that the disassembly and assembly process more smooth, smooth.

4, the bottom of the frame with 630 * 590mm 1.2mm thick mechanical stamping type oil catching tray, to do parts, tools, oil three do not fall to the ground. Ensure the cleanliness of the practical field.

5, the bottom of the frame is made of high-quality steel pipe, by special welding into the support frame, the upper part of the turbine worm gear flip mechanism, by special welding, the frame is beautiful and durable.

6, the flip frame is movable, with nylon rubber universal mobile casters, casters with locks for convenience and practicality.

The surface of the frame is made of metal paint sprayed by high temperature baking, with bright color and long life!

Training program

Recognize the overall structure of the engine

Starter motor awareness and teaching

Engine disassembly training program

Generator awareness and disassembly practical training

Recognition and disassembly of the starter motor practical training

Recognition and disassembly training of sensor and actuator.

Awareness and disassembly training of intake and exhaust components

Engine overhaul process training program

Engine structure and principle awareness training program

Recognition and use of turbine worm gear flip structure

Recognition and disassembly training of fuel injection and ignition components

Engine fault reading, troubleshooting and other experiments

Engine data flow reading waveform analysis and other experiments
